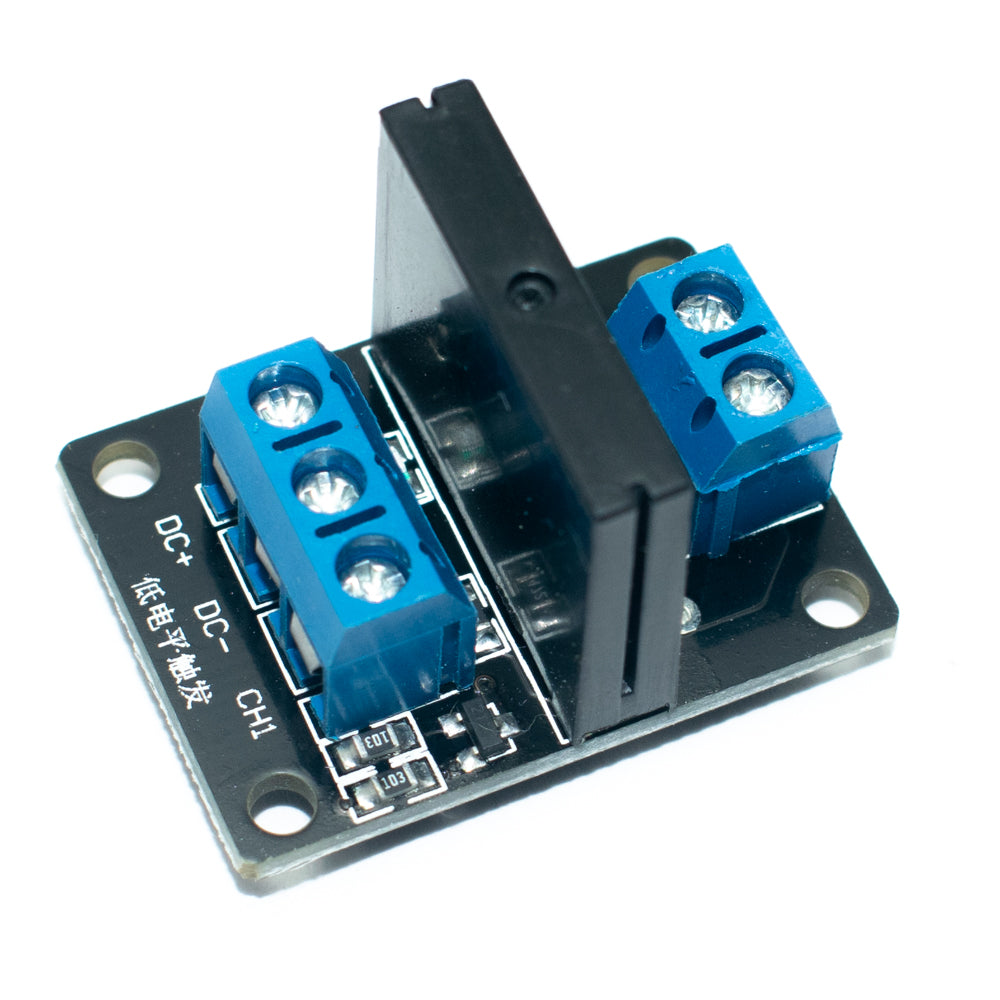

1 Channel 5V Solid State Relay Module

1 Channel 5V Solid State Relay Module

₹ 117.00
₹ 130.00 ₹ 117.00
Sold Out
Tax included. Shipping calculated at checkout.
Description  This Single channel solid state relay module is equipped with 240V 2A resistive fuse to prevent damage to the relay as well as the load. It is a 5V...
26 people are viewing this right now

Availability: In stock

SKU: ATC-2333
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Modules Relay Module
View full product details

Description

 This Single channel solid state relay module is equipped with 240V 2A resistive fuse to prevent damage to the relay as well as the load. It is a 5V LOW level-triggered relay, widely used in PLC control, home automation, DIY electronic industry, etc.

Module interface
DC+ : positive power supply (3.3V-5V DC)
DC- : connect negative power ( Ground)
CH : Digital Trigger Signal (Active LOW)


Specifications

  • Operating Voltage :- 3.3V~5V DC
  • Operating Current :- 2mA
  • Switching Capacity :- 240V @2A
  • Channel :- 1
  • Model :- HY-M285
  • Size :- 34.2x25.2x23.2mm

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
