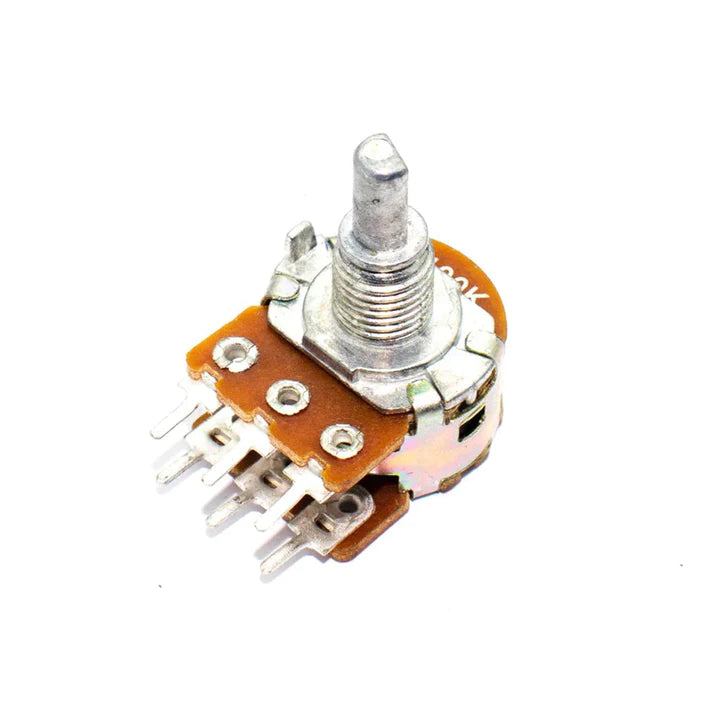

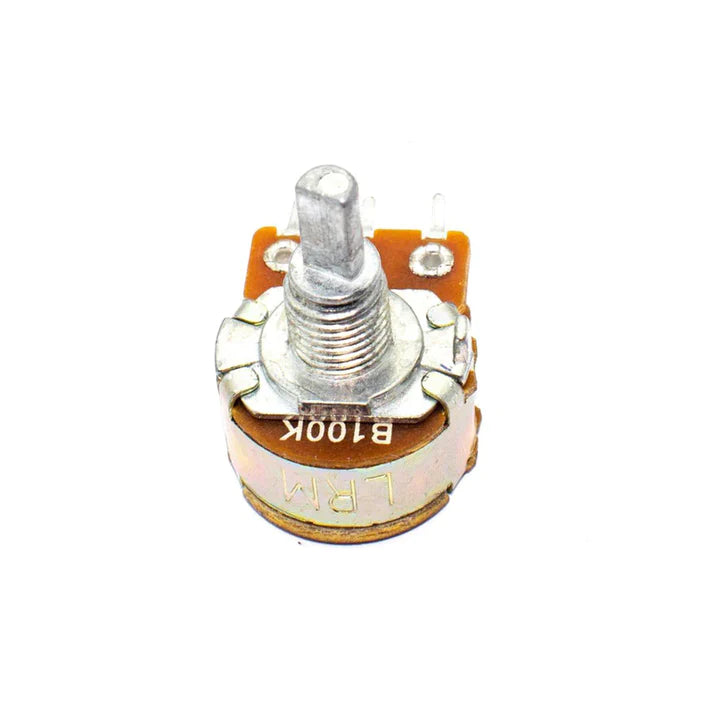

100k ohm Dual Gang Rotary Potentiometer 6 Pin D Type Shaft

100k ohm Dual Gang Rotary Potentiometer 6 Pin D Type Shaft

Description :-  Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 100k Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary...
21 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2163
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Potentiometer & Knobs
View full product details

Description :-

Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 100k Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer. These three-terminal devices can be used to vary the resistance between 0 to 47k ohms by simply rotating the knob. A potentiometer knob can also be used along with this POT for aesthetic purposes.

SPECIFICATION :-
  • Resistance Value :- 100k ohm (Ω)
  • Tolerance :- 20%
  • Temperature Co-efficient :- ±100ppm/℃
  • Operating Temperature Range :- -40 to 80°C
  • Shaft Diameter :- 6mm
  • Shaft Length :- 13mm
  • Mounting Type :- Through Hole
  • Width :- 17mm (Body Diameter)
  • Height :- 24mm
  • Weight :- 8gm

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
