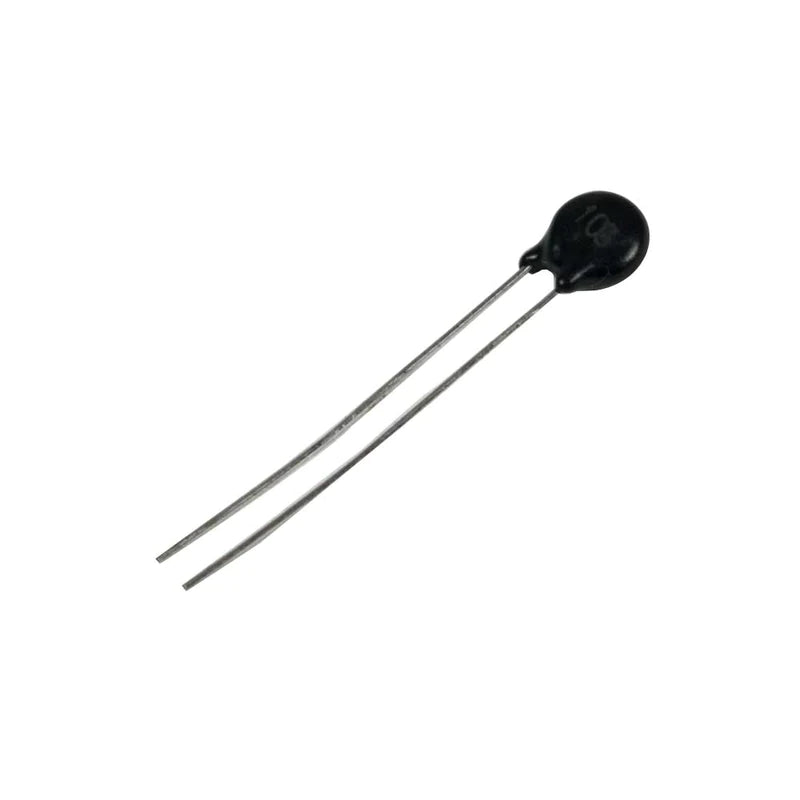

10k ohm NTC Thermistor

10k ohm NTC Thermistor

Description 10K Ohm NTC Thermistor is a special type of resistor whose value changes in accordance with its surrounding temperature. It is made by combining several metal oxides. This is...
16 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-3358
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

10K Ohm NTC Thermistor is a special type of resistor whose value changes in accordance with its surrounding temperature. It is made by combining several metal oxides. This is an NTC (Negative Temperature Coefficient) type thermistor. Hence as the temperature increases then the resistance of the thermistor decreases and vice versa. It provides resistance of 10K ohm at 25° C. 10K Ohm NTC Thermistor can measure temperature in the range of -55°C to 125°C. It is a very economical sensor. The thermal cooling time constant for this NTC thermistor (in the air) is less than equal to 20 seconds. The thermistor is widely used in freezers, air conditioners, fire alarms, temperature protection in battery charging systems, engine temperature control, etc.

SPECIFICATIONS
Resistance at 25°C 10K +- 1%
B-value (material constant) 3950+- 1%
Dissipation factor (loss-rate of the energy of a mode of oscillation) δ th(in the air) approx.7.5mW/K
Thermal cooling time constant <= (in air) 20 seconds
Thermistor temperature range  -55 °C to 125 °C
Lead Spacing 5 mm
