10S 36V 20A BMS For Lithium ION Battery Protection - DALY

DALY LI-ION 10S 36V 20A is a BMS - a battery management system designed to monitor battery status and control the charging and discharging process. This charge-discharge controller module can be concurrently connected to 10 rechargeable batteries in series. This is a 13S fixed configuration BMS. It cannot be used for any other battery pack configuration. This BMS also cannot be used for Li-Ion ,Li-Metal or LTO batteries. It is strictly for LiFePo4 battery packs only.

Features

• Cell overvoltage and under-voltage protection

• Intelligent battery balancing

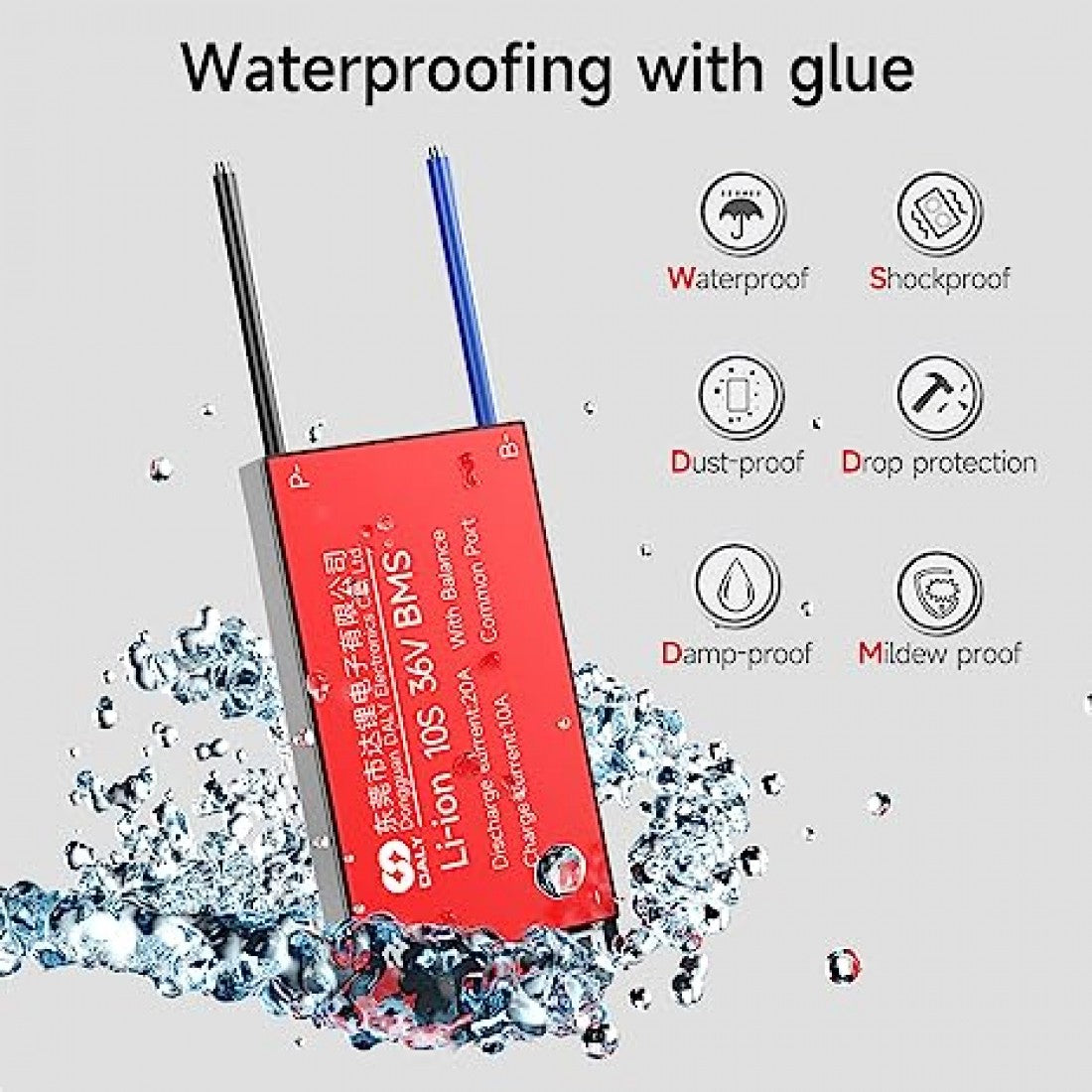

• Fully sealed waterproof technology along with  dustproof, shockproof, anti-squeezing, and other protective functions

• 10s 36v 20Amps Lithium Ion BMS

• Water Proof Bms

• With Thermal Sensor

• Support up to 700 watts motor


Specifications

• Normal voltage - 37v,

• Full charge voltage - 42v

• Cutoff Voltage- 30V

• Charging Current - Max 10A

• Discharge Current- Max 20A

• Charger Specification - 42v

• You can use this module in any AH like 20AH, 50AH also

• Temperature range of this BMS is from -20℃ to as high up to 70℃

• Balance Detect Voltage(V) - 4.18

• Overcharge Detect Voltage(V) - 4.25±0.05

• Overcharge Release Voltage(V) - 4.15±0.05

• Cable Size (AWG) - 14

• Length (mm) - 60

• Width (mm) - 34

• Height (mm) - 9

Applications

• Solar street lamp

• Electric tools

• Ups

• EVs

• Solar inverter

*Note: Product Image are shown for illustrative purposes only and may different from the actual product.
