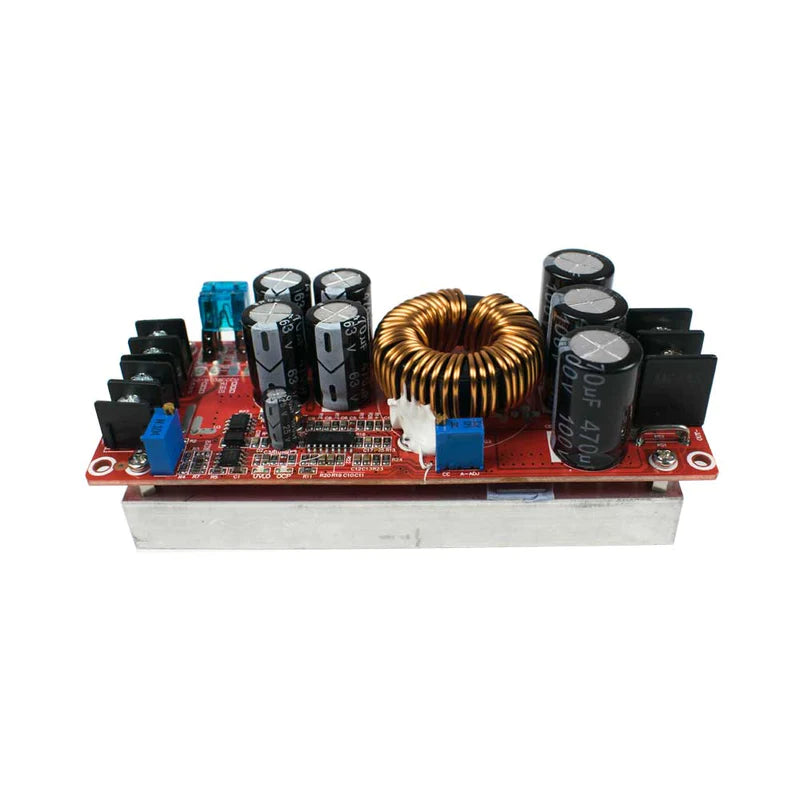

1200W High Power DC-DC Step-Up Boost Convertor

1200W High Power DC-DC Step-Up Boost Convertor

₹ 929.00
₹ 1,106.00 ₹ 929.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The SZ-BT07CCCV is a 1200 Watt High Power DC-DC Step-Up Boost Converter with an Adjustable Constant Current and Constant Voltage Features High Conversion Efficiency High Quality Input Over Current...
20 people are viewing this right now

Availability: In stock

SKU: ATC-2668
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Buck-Boost Converter
View full product details

Description

The SZ-BT07CCCV is a 1200 Watt High Power DC-DC Step-Up Boost Converter with an Adjustable Constant Current and Constant Voltage

Features

  • High Conversion Efficiency
  • High Quality
  • Input Over Current Protection
  • Output Voltage Adjustable
  • Output Current Adjustable

Note

  • The output polarity cannot be reversed/short-circuit.
  • When using batteries as an input source, you must lower the battery protection; otherwise, the battery and power supply will be damaged.
  • The input power supply voltage must be greater than 10V.

      SPECIFICATIONS
       Model SZ-BT07CCCV
       Type Boost Converter
       Converter Type DC-DC Converter
       Size (L*W*D) (mm) 130*53*46 (mm)
       Input Voltage Range 10-60V
       Output Voltage Range 12-90V
       Mode  CC, CV
       Working Temperature -40°C to +85°C
       Input Over-Current  Yes
       Fan Not Included
       Power 1200W
