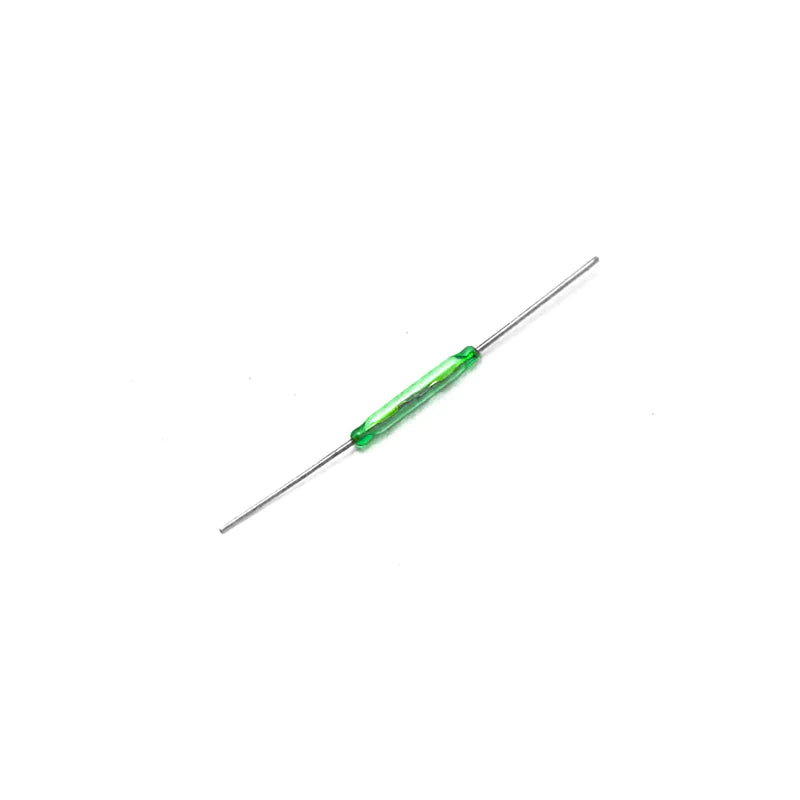

12mm Magnetic Control Reed Switch

12mm Magnetic Control Reed Switch

Description It's a 12mm Magnetic Control Reed Switch. In the presence of a magnetic field, a Reed Switch closes the circuit. It's a passive electrical switching component that regulates the flow...
20 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2450
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Reed Switch
View full product details

Description

It's a 12mm Magnetic Control Reed Switch. In the presence of a magnetic field, a Reed Switch closes the circuit. It's a passive electrical switching component that regulates the flow of electricity in a circuit. It consists of a glass envelope containing two ferrous elastic reeds and an inert gas or vacuum. Both reeds are normally apart, but once the magnetic field approaches the sensor, they will come together, completing the circuit. Electromagnetic relays, weighing devices, level metres, and other devices can be used to detect if a washing machine, refrigerator, or photocopier door is open or closed. It works with Arduino, Raspberry Pi, PIC, and other microcontrollers. It can generate only digital output, not analog output.

APPLICATIONS:
  • Home and office automation.
  • Door or windows sensor.

FEATURES:

  • Small Module.
  • Very easy to use.
  • Direct connection in the circuit.
    SPECIFICATION
    Size 12mm
    Frequency 100Hz
    Contact Resistance 20mΩ
    Insulation Resistance 100MΩ
    Operating Temperature -50°C to 140°C
