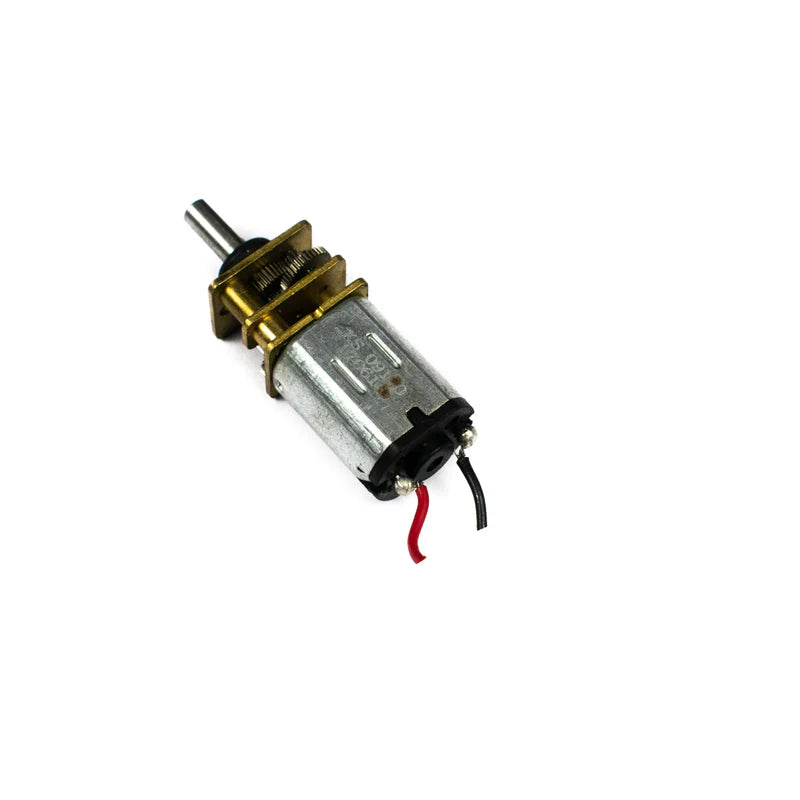

12mm N20 3V 35RPM Metal Gear Micro DC Motor

12mm N20 3V 35RPM Metal Gear Micro DC Motor

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description This N20-3V-35 RPM Metal Gear Micro Motor is a DC motor with a small capacity, high torsion, all-metal gears, and long service life. Great replacement for the machine's rusted...
21 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3875
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Motor
View full product details

Description

This N20-3V-35 RPM Metal Gear Micro Motor is a DC motor with a small capacity, high torsion, all-metal gears, and long service life. Great replacement for the machine's rusted or disabled DC geared speed reduced motor. Widely used in Boats, cars, electric bicycles, fans, and electric locks. The N20 Micro Gear 3V 35 RPM DC Motor (Low Torque) is a low-RPM, lightweight motor with high torque. This motor is fitted with a gearbox assembly that increases the motor's torque. The D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter, with a cross-section of 10 to 12 mm. The motor's compact size allows it to fit into tight spaces in small-scale applications.

SPECIFICATION
Current ≤45mA
Rated Voltage 3.0V DC
Operating Voltage 3V-6V DC
Torque 1.8 kg-cm
Speed 35 rpm @3V DC
Gear Ratio 1:298
Shaft Type D-type single side
Size 33.4mmx12mmx10mm
Motor Type DC Brush gear motor
