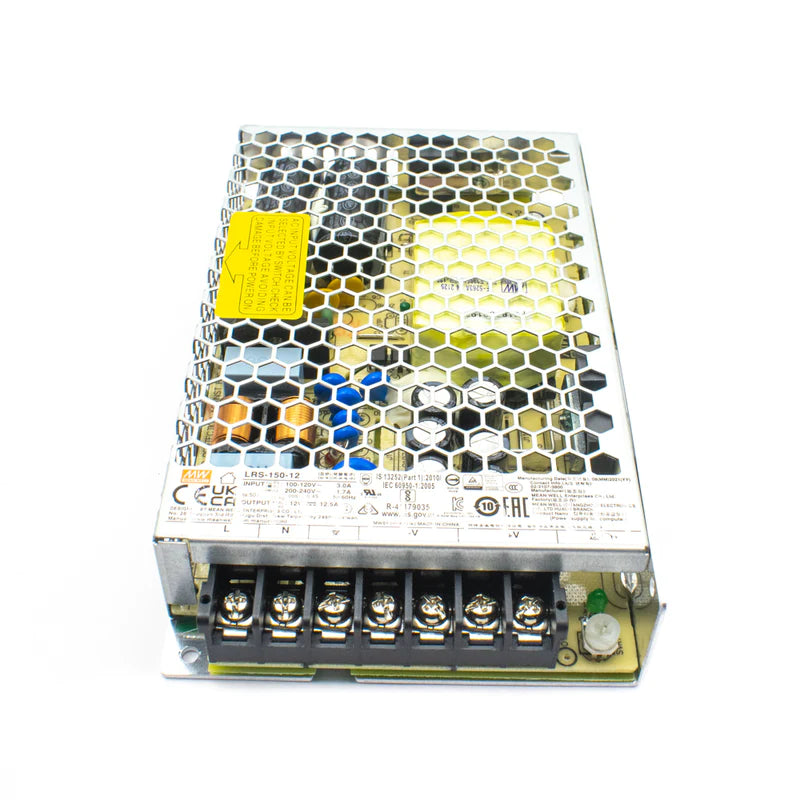

12V 150W Meanwell SMPS (LRS-150-12)

12V 150W Meanwell SMPS (LRS-150-12)

Regular price ₹ 1,538.55
Regular price ₹ 1,700.00 Sale price ₹ 1,538.55
Sold Out
Tax included. Shipping calculated at checkout.
Description Meanwell's LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design. The AC input is  85~264VAC which could be directly supplied from the...
24 people are viewing this right now

AvailabilityIn stock

SKU: ATC-2642
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

Meanwell's LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design. The AC input is  85~264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 12V. The SMPS has high efficiency up to 87.5%, the design is of metallic mesh case which enhances the heat dissipation of  LRS-150 that the whole series operates from -30°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.5W), which allows the end system to easily meet the worldwide energy requirement. Meanwell's 12V 150W LRS-150 has complete protection functions and 5G antivibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-150 series can be used for many purposes with the best performance from it.

Pinout:

Pin No. Pin name Description
1,2 AC/L&N Supplied AC Voltage (85 ~ 264VAC)
3 FG GND
4,5 V- DC OUTPUT -V
6,7 V+ DC OUTPUT +V (12V)



Features

  • AC input range selectable by switch
  • Protections from Short circuit, Overload, Over voltage and over temperature.
  • Cooling by free air convection
  • It has a LED for indicating power on.
  • 100% full load burn-in test
  • Using 105°C long life electrolytic capacitors for better performance
  • Withstand 300VAC surge input for 5 second
  • Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances
  • High operating temperature up to 70°C
  • Miniature size and 1U low profile
  • Withstand 5G vibration test
  • No-load power consumption<0.5W
  • High efficiency, long life and high reliability
SPECIFICATIONS
Input Voltage 115V~240V AC
Output Voltage 12V DC
Maximum Output Current 12.5A
Rated Power 150W
Efficiency 87.5%
Operating Temperature -30°C to 70°C
Size 159x97x30mm
