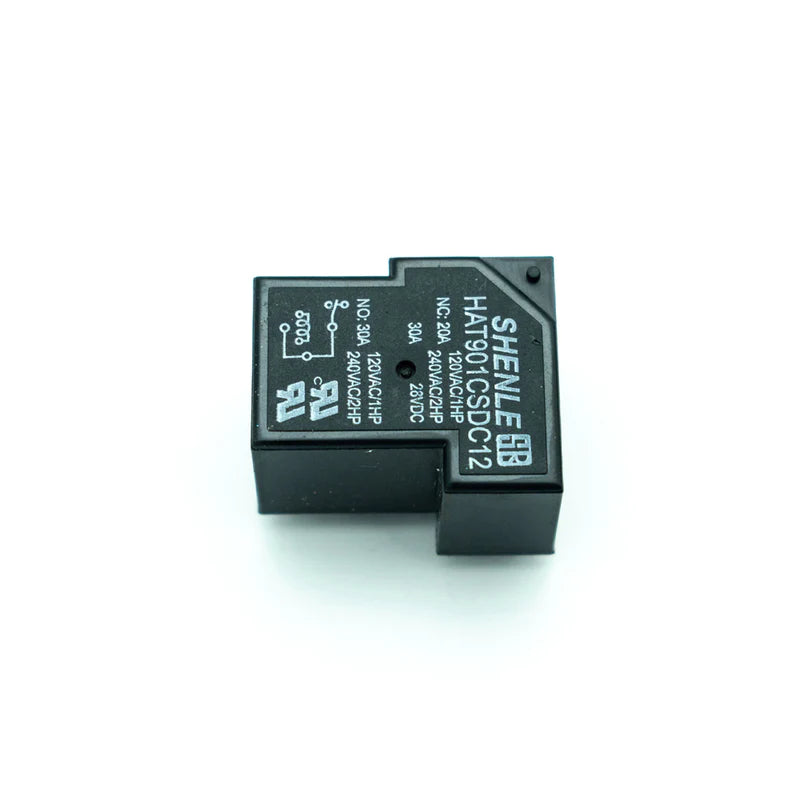

12V 30A T Type Power Relay H90-S-DC12V-C

12V 30A T Type Power Relay H90-S-DC12V-C

Description This Power relay is used for switching high current AC appliances such as Air Conditioner,  Electric Heater, Geyser etc. which need to be controlled from microcontroller or sensor output. 12V T...
26 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2313
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Relay
View full product details

Description

This Power relay is used for switching high current AC appliances such as Air Conditioner,  Electric Heater, Geyser etc. which need to be controlled from microcontroller or sensor output. 12V T Type Relay can switch load of 30A connected to it. There are 6 Pins in this relay which are shown in the image. The relay we have is better in quality.

 SPECIFICATIONS:
Rating Voltage  12 Volt
Maximum Current (@250VAC) 30A(Normally Open), 20A(Normally Closed)
Maximum Current (@30VDC) 30A(Normally Open), 20A(Normally Closed)
Supply Current 0.075A
Dimension(LxWxH) (mm) 31x27x19 (mm)
Colour Black
