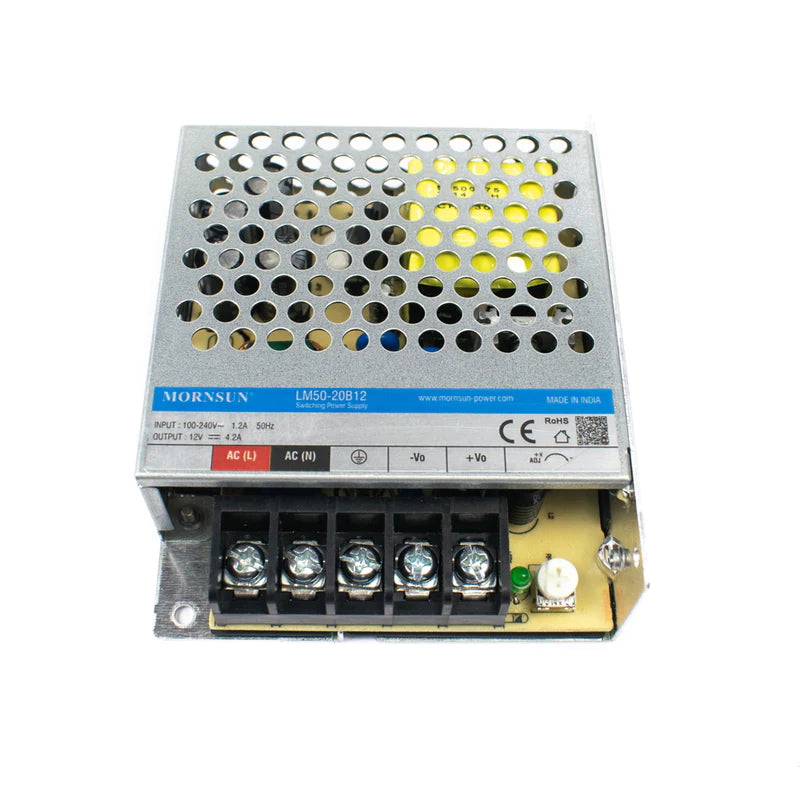

12V 4.2A Mornsun Power Supply (LM50-20B12)

12V 4.2A Mornsun Power Supply (LM50-20B12)

Description LM50-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supplies. It features universal AC input and at the same time accepts DC input voltage, is cost-effective, low no-load...
25 people are viewing this right now

Availability: In stock

Ask For Price
SKU: ATC-2629
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Mornsun Power Supply SMPS
View full product details

Description

LM50-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supplies. It features universal AC input and at the same time accepts DC input voltage, is cost-effective, low no-load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

FEATURES

  • Universal 85 - 264VAC or 120 - 370VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Low standby power consumption, high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m
SPECIFICATIONS
Brand Mornsun
Model LM50-20B12
Output Voltage 12V
Max. Output Current 4.2A
Power 50.4W
Adjustable Output Voltage 10.2-13.8V
