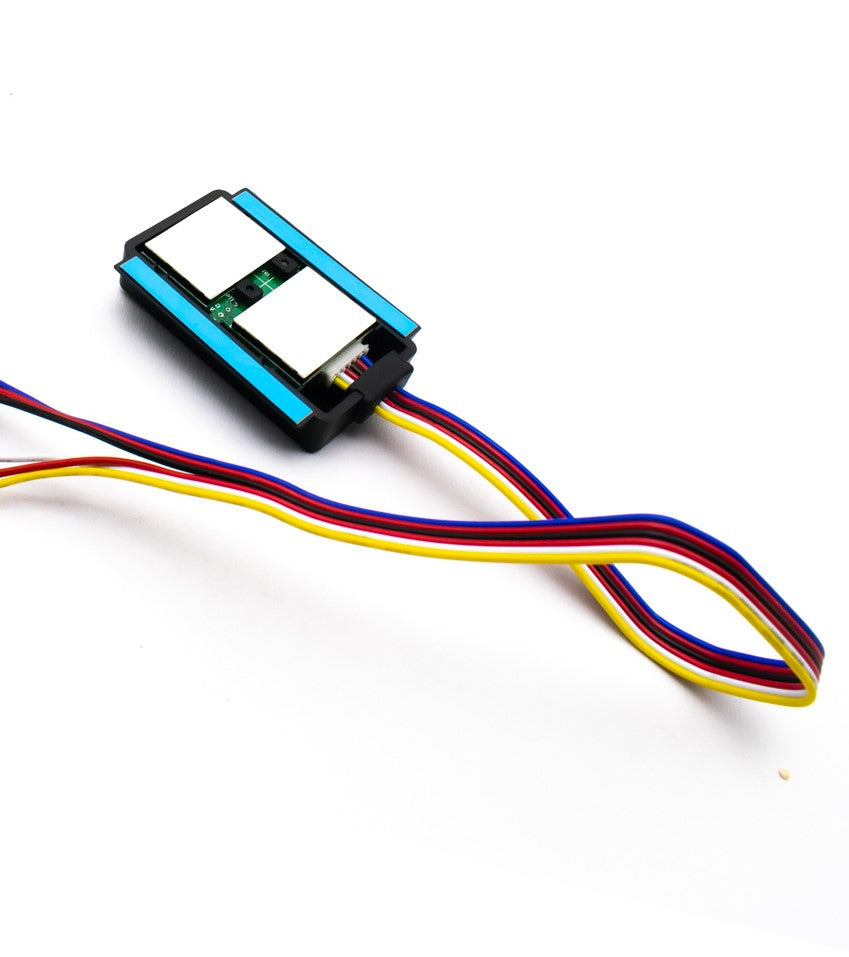

12V 5A Premium Hand Wave Sensor, Double touch Switch with Dimmer Operate Double Led StripS

12V 5A Premium Hand Wave Sensor, Double touch Switch with Dimmer Operate Double Led StripS

Description This switch is an isolated touch sensor switch, applicable to all types of lamps on the medium(such as glass, acrylic, plastic, ceramic, etc.) High safety performance, long lifespan, beautiful...
26 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2465
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Touch Switch
View full product details

Description

This switch is an isolated touch sensor switch, applicable to all types of lamps on the medium(such as glass, acrylic, plastic, ceramic, etc.) High safety performance, long lifespan, beautiful and generous, is the first choice of making top-grade products. Can ensure customers safe, effectively prevent the interference of the outside world. There are two output options by keeping positive common and GND of the output different. The IR sensor in the middle works as a switch, it switches on and off the output power whenever there is an obstacle(hand) in front of it. If there is a LED strip in the output so the intensity of it can be changed by keeping the hand in front of the IR sensor continuously. The intensity goes from high to low then again low to high. As the module gets connected to two LED strips at a time so the first wave(wave of the hand) in front of the IR sensor switches on the first LED, the second wave switches on the second LED and switches off the first. The third wave switches on both the LED's and it repeats from the next wave, for switching the LED the waves should be quick.

Pinout

 V+(RD) Supplied with positive of 6-12V
V-(BK) Connected with GND of Input
YL GND of OUT1
WT GND of OUT2
RD Common positive of OUT1 and OUT2


Features:

  • Illumination for pictograms
  • To make the things automatic it is a better option.
  • Very little weight and small size form factor make it easily fits into any application area.
  • It senses the obstacle quickly.
SPECIFICATIONS
Operating Voltage 12-24V
Rated Power 60W
Model YMS-712
Rated Current 5A
Working temperature -10°C ~ 45°C
Dimension(LxBxH) 63.5mm x 44mm x 13.6mm
