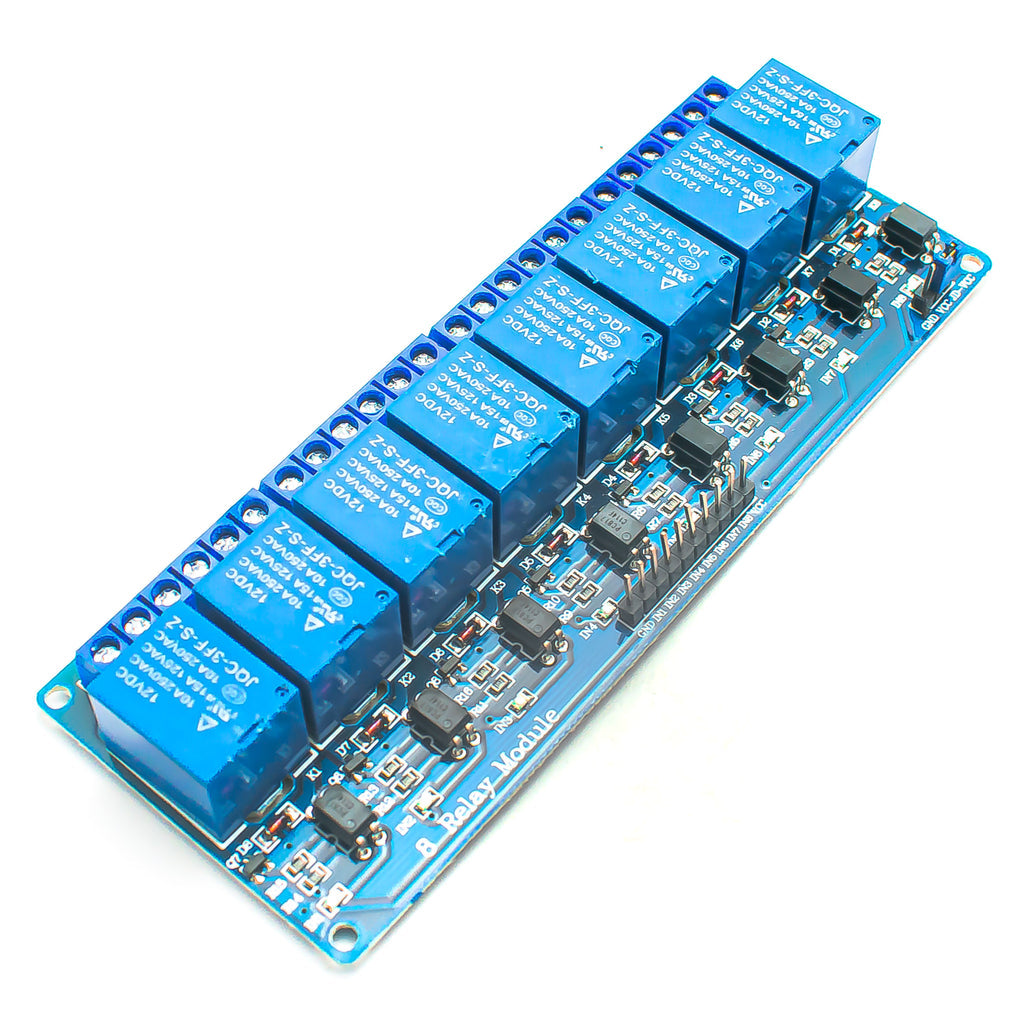

12V 8 Channel Relay Module with Optocoupler

12V 8 Channel Relay Module with Optocoupler

Description This is an 8-channel relay board that runs on 12 volts. Any microcontroller or other control system circuits can be used to control loads rated up to 250V 10A...
27 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2325
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Relay Module
View full product details

Description

This is an 8-channel relay board that runs on 12 volts. Any microcontroller or other control system circuits can be used to control loads rated up to 250V 10A AC directly.
Each relay has three connections: Common (C), Normally Open (NO), and Normally Closed (NC), all of which are connected to three-pin screw terminals, making it simple to connect and disconnect. To make debugging easier, the board incorporates a power indicator and a relay status LED. The board's header pins receive power input and relay control signals.

SPECIFICATION
Operating Voltage 12V DC
Trigger Voltage 12V DC
Switching Power AC 250V @10A, DC 30V @10A
Relay ON Active LOW
Size 134x52x18.6mm
