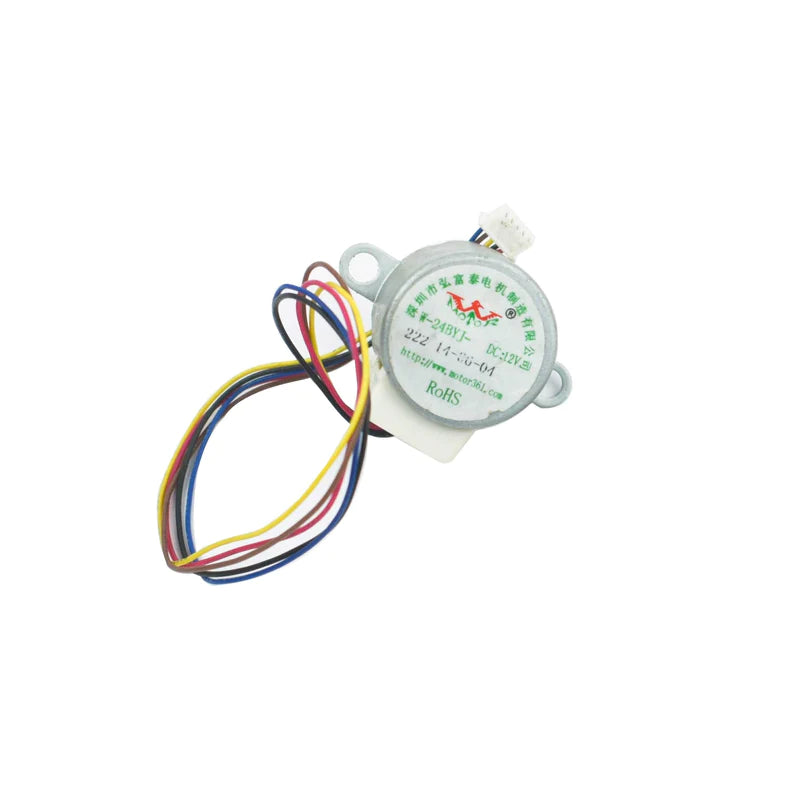

12V Mini Stepper Motor W-24BYJ-48

12V Mini Stepper Motor W-24BYJ-48

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description Because of the system's stability and durability, the 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a common combination of stepper motor and stepper driver. The 28BYJ-48 stepper motor...
24 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3840
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Modules Motor
View full product details

Description

Because of the system's stability and durability, the 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a common combination of stepper motor and stepper driver. The 28BYJ-48 stepper motor is the most commonly used stepper motor due to its small size, 12V power supply (which can be supplied by any controller), and high level of control. Driver Module ULN2003 Stepper Motor Driver Board is used to drive and control stepper motors. The ULN2003 Stepper Motor Driver Board drives the 4-phase 5-wire stepper motor with the ULN2003 DARLINGTON ARRAYS. An ordinary ULN2003 chip can be used to drive the 5 Line 4 Phase, which can also be connected to the phase 2 development board to facilitate the usage of a direct plug and easy-to-use stepper motor. These stepper motors draw a lot of currents, hence a driver IC like the ULN2003 is required. The major function of the ULN2003 is to amplify the control signals from the Arduino so that they can be used to operate the 28BYJ-48 Stepper Motor. If you send a specific pulse signal to the ULN2003 stepper driver, it will drive the step motor at a specific angle. The number of stepper motor driver pulses is used to control the stepper motor movement angle. The frequency of the pulses can also be used to adjust the rotational speed of the stepper motor.

Applications

  • Mainly used in Air Conditioner Louver
  • Small Cooling/Heating Fan, etc.
  • DIY robotics projects
  • CNC machines and 3D printers
  • Machines that need precise control
  • Motor and security camera
  • DVD players

SPECIFICATIONS
Voltage 12V DC
Current 40mA
Step Angle 5.625°/64
Frequency 100Hz
Detent Torque >=29.4mN.m
Resistance 300Ω
Number of Phase 4
Speed Variation Ratio 1/64
Pull in torque >=29.4 mN.m
Insulated Power/Dielectric Strength 600 VAC/1mA/1s
