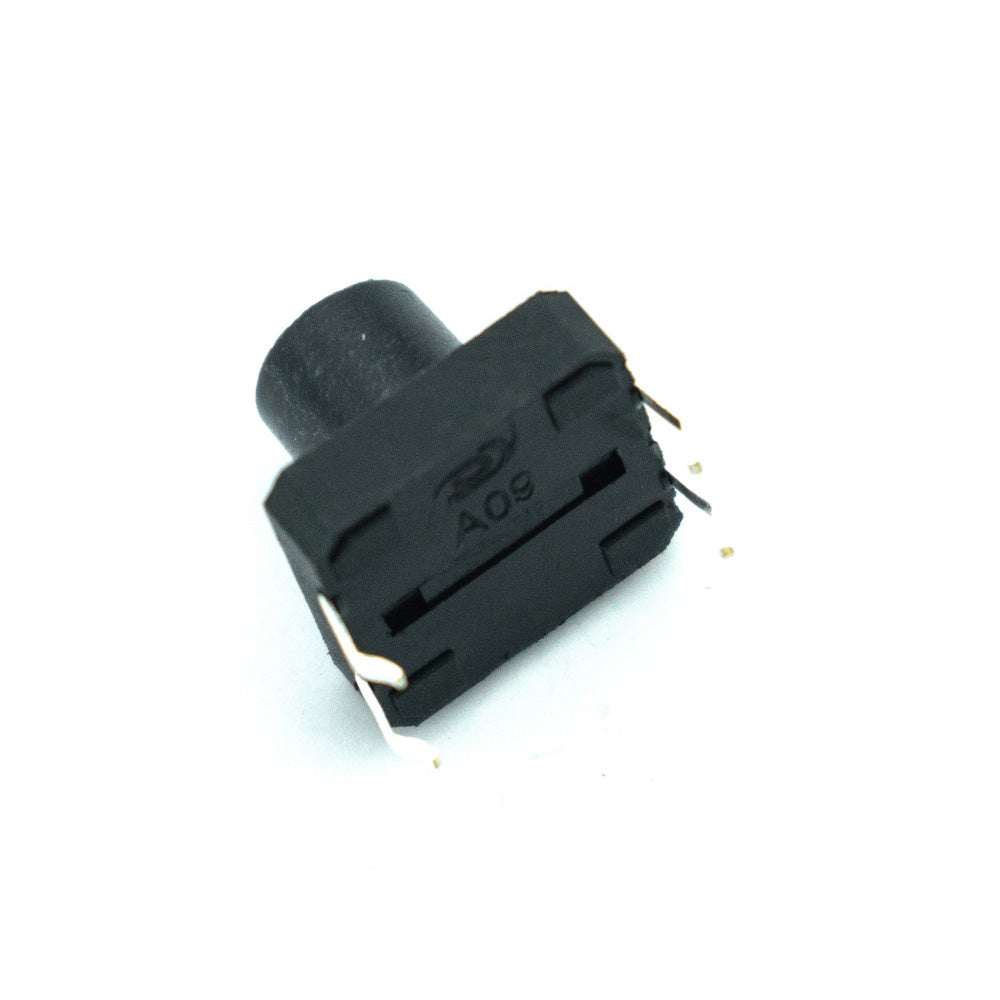

12x12x10mm Tactile Push Button Switch (Pack of 20)

12x12x10mm Tactile Push Button Switch (Pack of 20)

Regular price ₹ 140.00
Regular price ₹ 150.00 Sale price ₹ 140.00
Sold Out
Tax included. Shipping calculated at checkout.
Description Tactile push button switch is Normally Open switch. The tactile button connects the circuit for the time it is kept pressed and as soon as it is released the...
22 people are viewing this right now

AvailabilityIn stock

SKU: ATC-2360
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Push Button
View full product details

Description

Tactile push button switch is Normally Open switch. The tactile button connects the circuit for the time it is kept pressed and as soon as it is released the circuit is disconnected. The Tactile Push-button has 4 pins. Two pins are connected internally. These Tactile push-buttons features a through-hole design. Its high precision mechanism offers acute operation and long life. It is majorly used as standard input buttons in electronics circuits. Tactile push buttons have a long life, it works fine for more than 300000 cycles. Tactile buttons are waterproof.

 SPECIFICATIONS
On/Off Function Push to ON
Switching Type Momentary
Mounting Type Through Hole
Contact Material Aluminium Alloy
Contact Resistance 50mΩ
Insulation Resistance 100MΩ
Operation Force About 3-5N
Operation Stroke 1.05mm
Body Material Plastic
Mechanical and Electrical Life 300,000 Cycles
Protection Grade IP65
