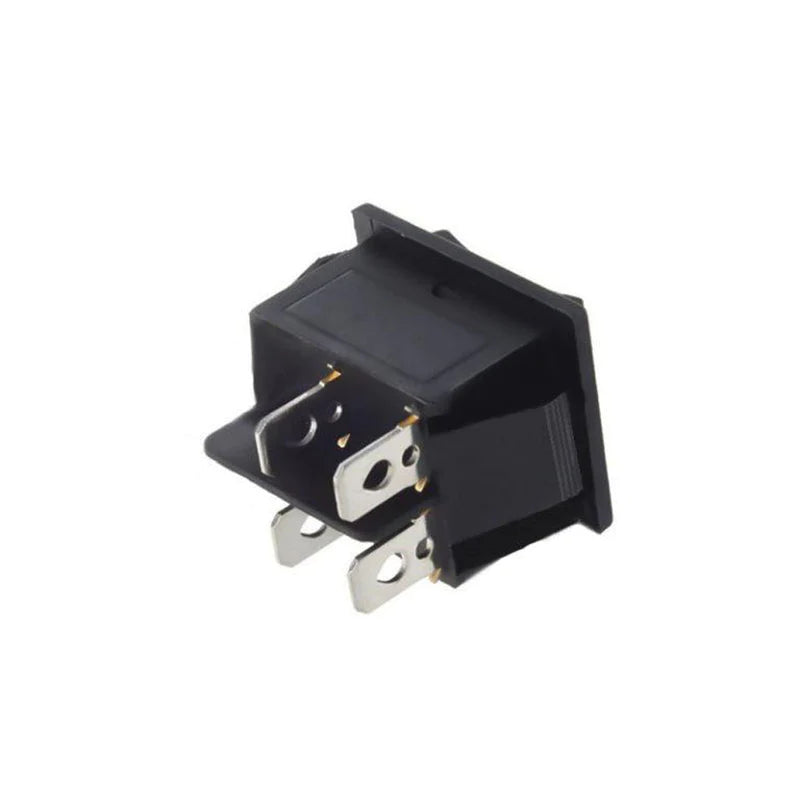

16A 250V AC DPST ON-OFF Rocker Switch

16A 250V AC DPST ON-OFF Rocker Switch

Description DPST (Double Pole Single Throw) Rocker switch is a 4-pin switch. DPST Rocker switch is very easy to use and install as it requires no screws or nut bolt...
22 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2373
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Rocker Switch
View full product details

Description

DPST (Double Pole Single Throw) Rocker switch is a 4-pin switch. DPST Rocker switch is very easy to use and install as it requires no screws or nut bolt for its installation. This switch has two positions i.e., ON and OFF. And it stays in its position until it is not pressed again to change its position. ON and OFF positions are clearly marked on the switch as O and I respectively to make it easy to identify the current position of the switch. This switch is rated for the load of 16A 250V and 20A 125V.

SPECIFICATIONS
Voltage and Current Rating Max 16A at 250VAC and 20A at 125VAC
Switching Mode ON-OFF
Structure DPST
Colour Black
Number of Pins 4
Dimension (LxWxH) 21x15x16 (mm)
Panel Cut-Out(LxW) 25x21 (mm)
