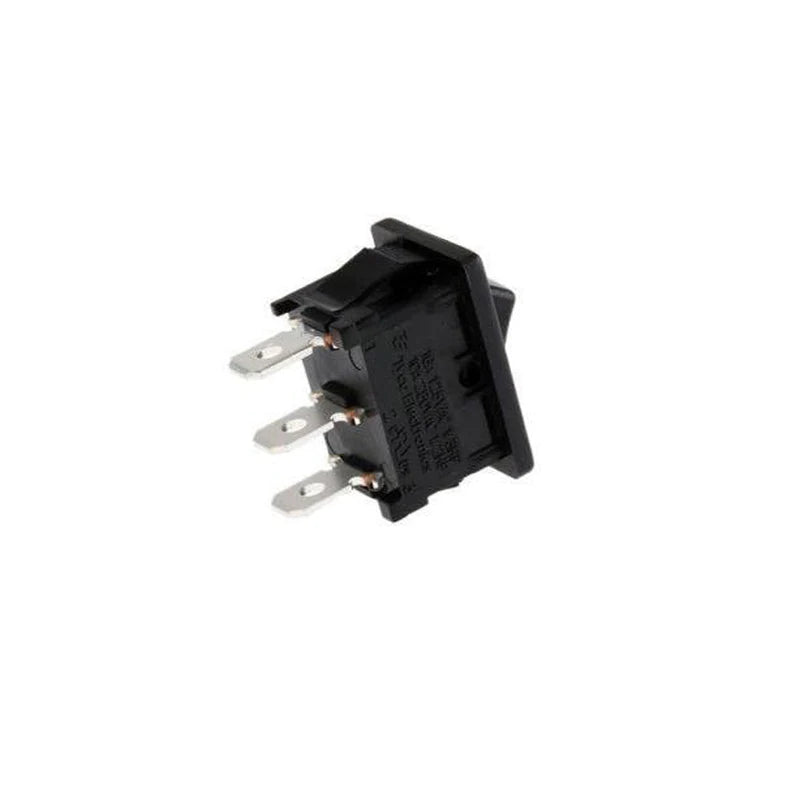

16A 250V DPDT Rocker Switch (Lock Action)

16A 250V DPDT Rocker Switch (Lock Action)

Description This is an SPDT (Single Pole Double Throw) switch which has three positions ON, OFF and ON. SPDT mini Rocker switch is rated for a load of 6A 250V...
16 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2383
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Rocker Switch
View full product details

Description

This is an SPDT (Single Pole Double Throw) switch which has three positions ON, OFF and ON. SPDT mini Rocker switch is rated for a load of 6A 250V and 10A 125V. This switch has three terminals in it. Positions are clearly marked on the button to make it easy for users to identify its position. ON, OFF and ON are marked as I, O and II respectively. This switch can be used to control the clockwise and anti-clockwise motion of a motor.

SPECIFICATIONS
Rating 6A @ 250VAC 10A @ 125VAC
Switching Mode ON-OFF-ON
Structure SPDT
Number of Pins 3
Material Plastic and Metal
Mounting hole diameter 20-30 mm
Dimension (LxWxH) 21x15x23 (mm) (Including Pins Height)
Panel Cut-out(mm) 17x13 (mm)
