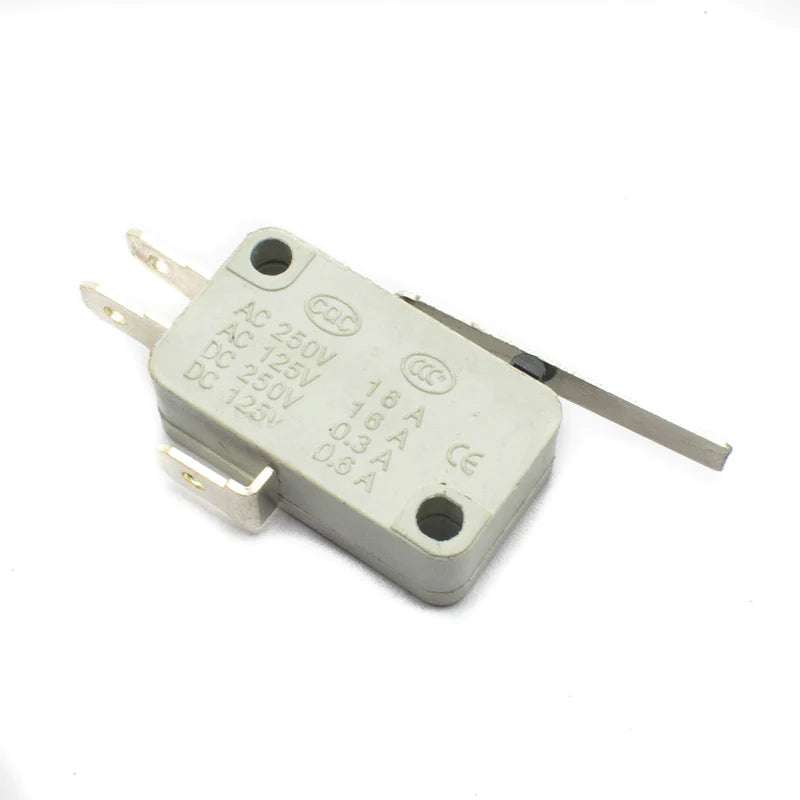

16A 250V Micro Limit Lever Push Button Switch

16A 250V Micro Limit Lever Push Button Switch

Description This 16A 250V Micro Limit Lever Push Button Switch uses a physical lever to actuate and operate the switch. lever switches function as simple on/off switches that operate using a lever...
17 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2440
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Limit Switch
View full product details

Description

This 16A 250V Micro Limit Lever Push Button Switch uses a physical lever to actuate and operate the switch. lever switches function as simple on/off switches that operate using a lever or handle to toggle the switch between the two positions. This Single Pole Double Throw (SPDT) is a micro switch that needs a very less amount of force to operate. They are very reliable, fast and efficient to use. This switch can be configured into NO or NC (normally open -Normally closed) configuration.

SPECIFICATIONS

AC Current ratings

250V - 16A, 125V - 16A

DC Current ratings

250V - 0.3A, 125V - 0.6A

Insulation Resistance

50MΩ 500V DC

No. of pins

3

Type SPDT

Configuration

NO and NC (Normally open- Normally closed)

Lever Size

27.6mm

L*B*H

48.1*20.9*21.3mm
