1N5399 General Purpose Diode 1.5A 1000V

1N5399 General Purpose Diode 1.5A 1000V

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description A diode is a device that allows current flow through only one direction. That is the current should always flow from the anode to the cathode. The cathode terminal...
20 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3464
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

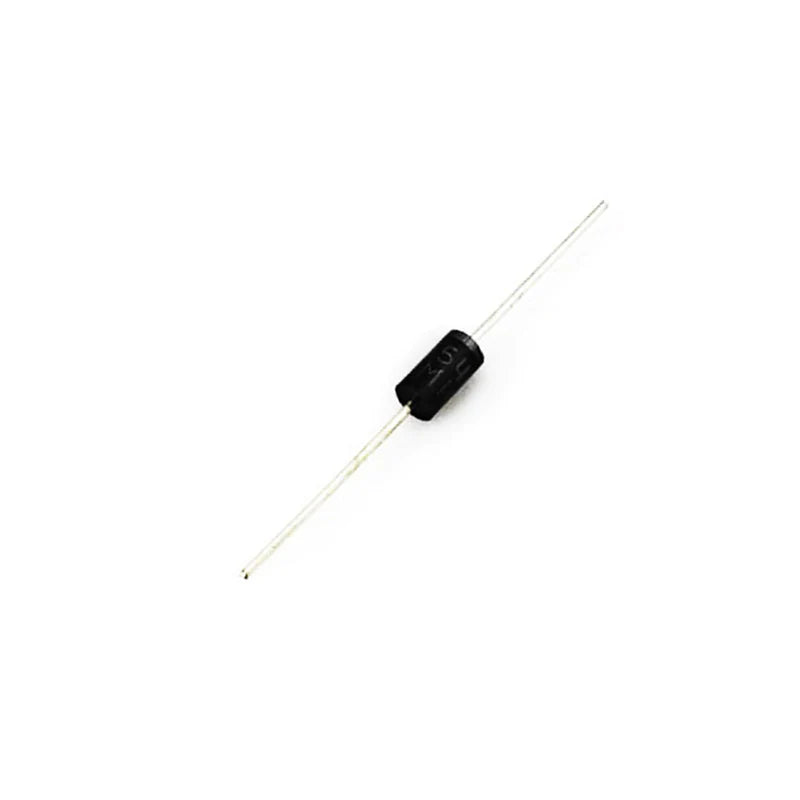

A diode is a device that allows current flow through only one direction. That is the current should always flow from the anode to the cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above.
For 1N5399 Diode, the maximum current carrying capacity is 1.5A it withstands peaks up to 50A. Hence we can use this in circuits that are designed for less than 1.5A. The reve
rse current is 5uA which is negligible.

Features

  • Diffused Junction
  • Low forward Voltage Drop
  • High Current Capability
  • High Reliability
  • High Surge Current Capability
SPECIFICATIONS
Part Number 1N5399
Peak Reverse Voltage 1000V AC
Maximum RMS Voltage 700V AC
Average Rectified Current 1.5A
Max. Reverse Current DC 5uA
Max. Forward Voltage 1.0V
