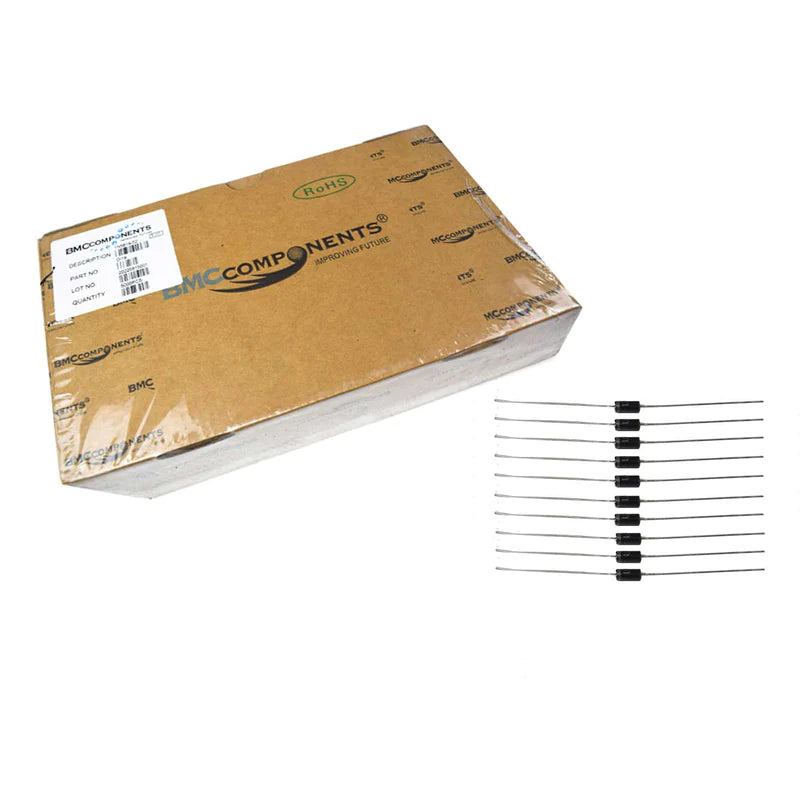

1N5819 1.0A 40V Schottky Barrier Rectifier Diode DO-41

1N5819 1.0A 40V Schottky Barrier Rectifier Diode DO-41

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The 1N5819 is a 40V 1.0A Schottky Barrier Rectifier Diode in a DO-41 Case Package. The axial leaded Schottky rectifier 1N5819 has been optimized for very low forward voltage drop and...
27 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3511
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Schottky Diode
View full product details

Description

The 1N5819 is a 40V 1.0A Schottky Barrier Rectifier Diode in a DO-41 Case Package. The axial leaded Schottky rectifier 1N5819 has been optimized for very low forward voltage drop and moderate leakage. Switching power supplies, converters, free-wheeling diodes, and reverse battery protection are common applications.

Features

  • Schottky Rectifier Diode
  • The average forward current is 1A
  • Forward Surge Current is 25A
  • Forward Voltage Drop 600mV at 1A
  • The peak reverse voltage is 40V
  • RMS Reverse Voltage is 28V
  • Available in DO-41 Package

Applications

  • High-Frequency Inverters
  • Used as a protection device
  • Current flow regulators
  • Polarity Protection applications
SPECIFICATIONS
 Model 1N5819
 Make BMC Components
 Type Schottky Diode
 Max. Average Forward Rectified Current 1A
 Max. Recurrent Peak Reverse Voltage 40V
 Forward Surge Current 25A
 Case DO-41
 Mounting Type Through Hole
 No of Pin 02
 Operating Temperature Range -65 to +125 °C
