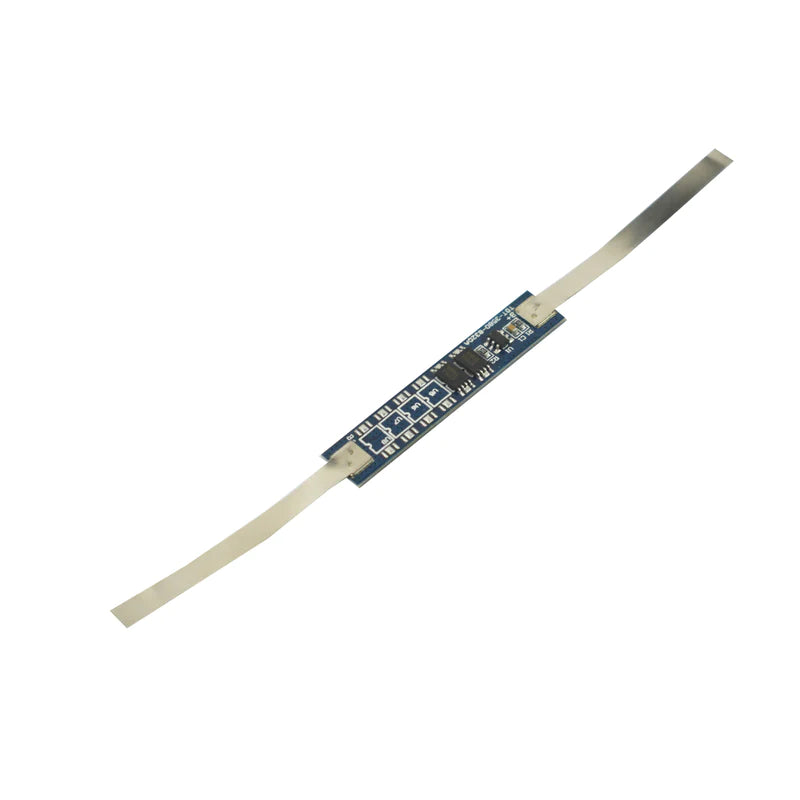

1S 3.7V 4A BMS for LiFePO4 Lithium Batteries with Nickel Strip

1S 3.7V 4A BMS for LiFePO4 Lithium Batteries with Nickel Strip

Description This 1S 4A BMS LiFePO4 Battery Protection Board With Nickel Strip is commonly used to manage and protect the battery from overcharge or discharge. It is very safe and...
20 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2571
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: BMS
View full product details

Description

This 1S 4A BMS LiFePO4 Battery Protection Board With Nickel Strip is commonly used to manage and protect the battery from overcharge or discharge. It is very safe and reliable to use. This module provides short circuit protection; overload, discharge and overcharge protection. This little piece of equipment ensures the safety and protection of your battery pack. So that the battery can provide you with long service life.

This module has low current consumption and provides stable performance.  Due to its small size, excellent performance and low cost. This product is suitable to meet a wide range of requirements

Pin-Out:-

  • B+ is connected to the positive battery.
  • B-connect the battery negative.
  • P+ is the positive input of the battery pack output
  • P- is the negative input of the battery pack output
SPECIFICATION
Overcharge Release Voltage 3.6±0.25V
Overcharging Voltage Range 3.75±0.25V
Over-discharge Voltage Range 2.1±0.5V
Over-Current Detection 4A
Nominal Voltage 3.7V
Size
40.3x8x1.8mm
