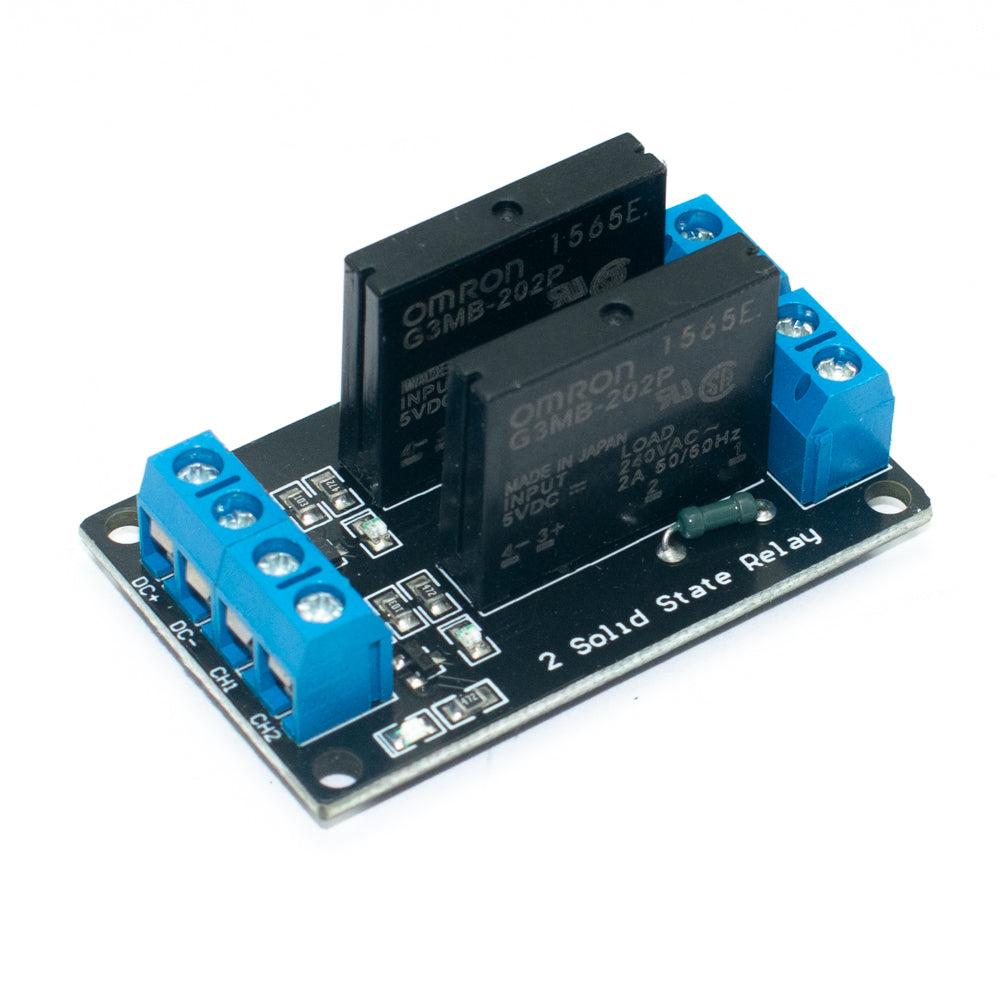

2 Channel 5V Solid State Relay Module

2 Channel 5V Solid State Relay Module

Description The Solid State Relay (SSR) offers many advantages over the classic mechanical relay: it has a longer life, a considerably faster switch on/off speed, and no noise. It also...
28 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2320
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Modules Relay Module
View full product details

Description

The Solid State Relay (SSR) offers many advantages over the classic mechanical relay: it has a longer life, a considerably faster switch on/off speed, and no noise. It also has better vibration and mechanical shock resistance, as well as better moisture resistance.
This Solid State Relay Module includes four channels, each of which may work independently and be controlled. It is based on the Omron G3MB and is capable of controlling current up to 2A@240VAC.

SPECIFICATION
Operating Voltage 5V DC
Operating Current 12.5mA
Trigger Voltage 0-1.5V (Active LOW)
Trigger Current 2mA
No. of Channels 2
Size 51.5x31.8x24mm
