2 Pin Plugin Terminal Right Angle 3.81mm Male-Female Pair (Pack of 10)

2 Pin Plugin Terminal Right Angle 3.81mm Male-Female Pair (Pack of 10)

Regular price ₹ 200.00
Regular price ₹ 220.00 Sale price ₹ 200.00
Sold Out
Tax included. Shipping calculated at checkout.
Description It is a 2 Pin Plugin Terminal Right Angle 3.81mm Male-Female Pair ZBK200R (Combicon Connector).  This screwable 2 pins Right Angle connector pair is also known as a "pluggable...
16 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3170
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Terminal Block
View full product details

Description

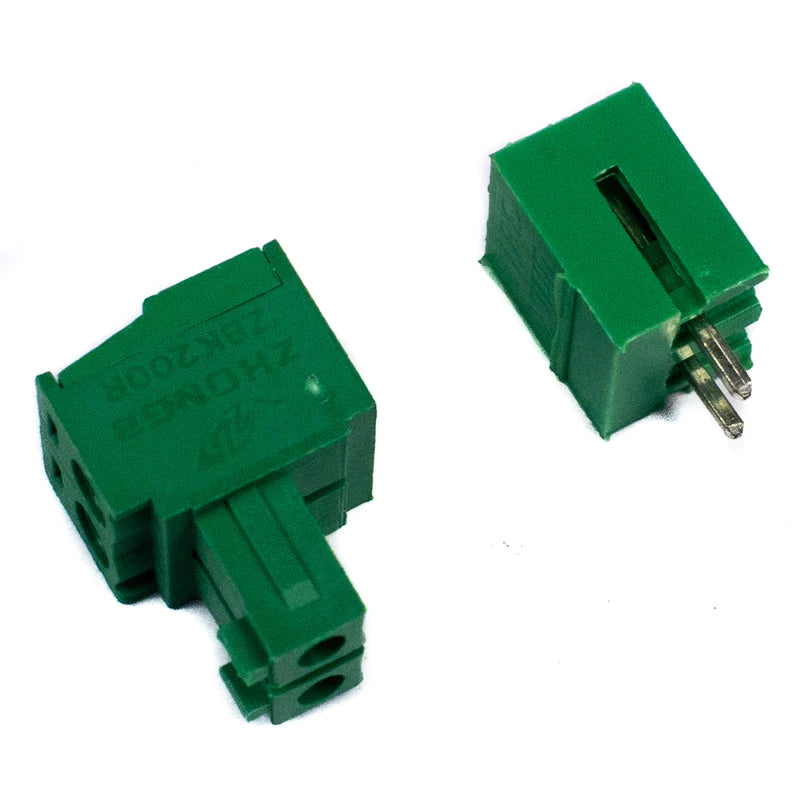

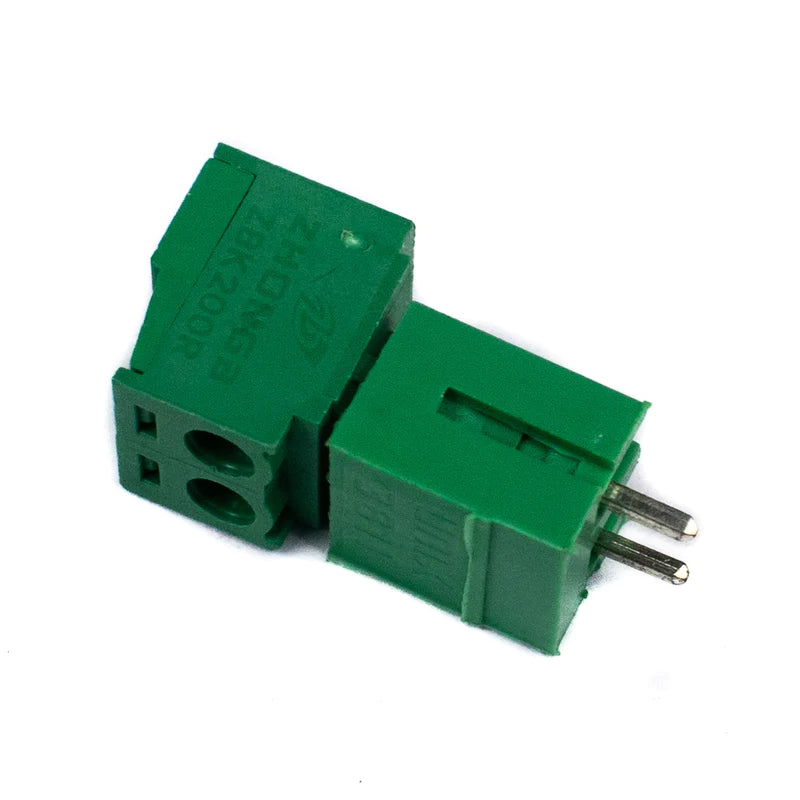

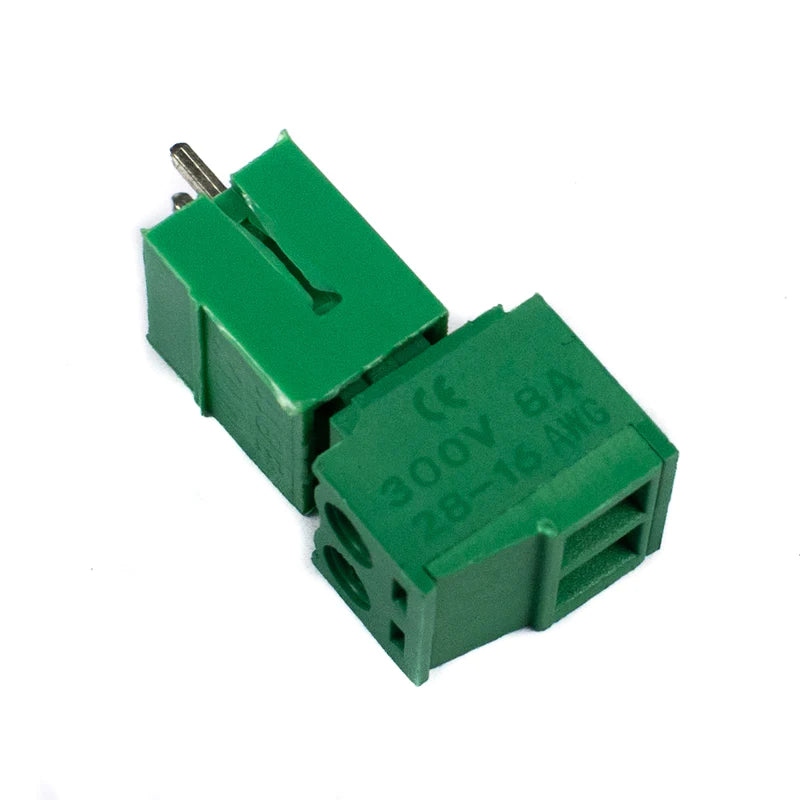

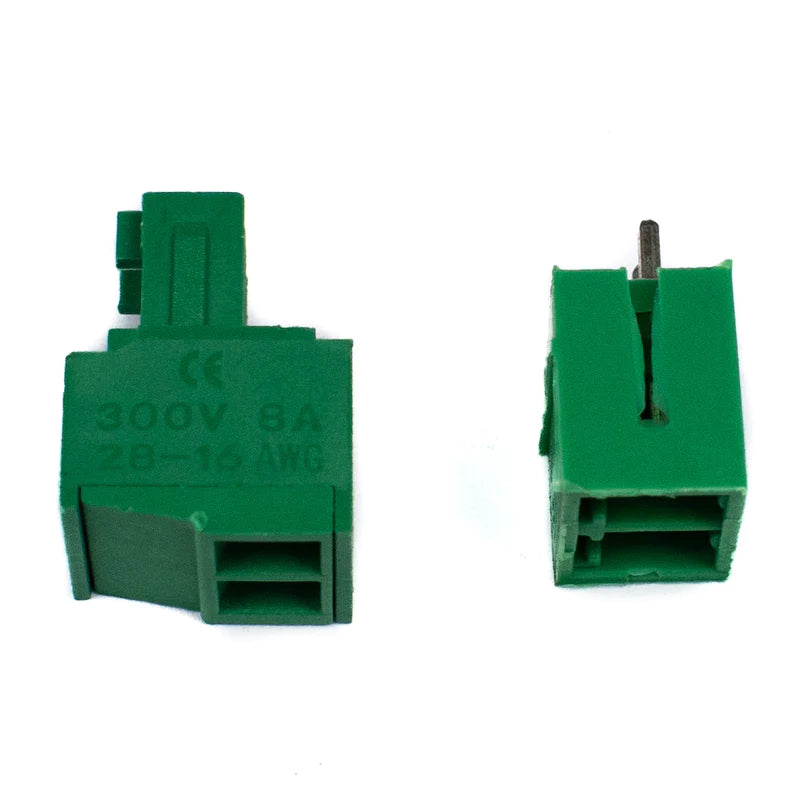

It is a 2 Pin Plugin Terminal Right Angle 3.81mm Male-Female Pair ZBK200R (Combicon Connector).  This screwable 2 pins Right Angle connector pair is also known as a "pluggable terminal block" or a "two-piece terminal block" ZBK200R  3.81 series. Along with this Screw Type 2 Pin Right Angle female plug, you will get a 2 Pin Male PCB Mount Right Angle Header 3.81 mm pitch.

Specification

  • Voltage Rating :- 300V
  • Current Rating :- 8A
  • Number of Pins :- 2
  • Mounting :- Free hanging and PCB mount
  • Operating Temperature :- -40°C to 105°C
  • Wire Gauge :- 14~24 AWG
  • Pitch :- 3.81mm
  • Colour :- Green
  • Type :- Combicon

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
