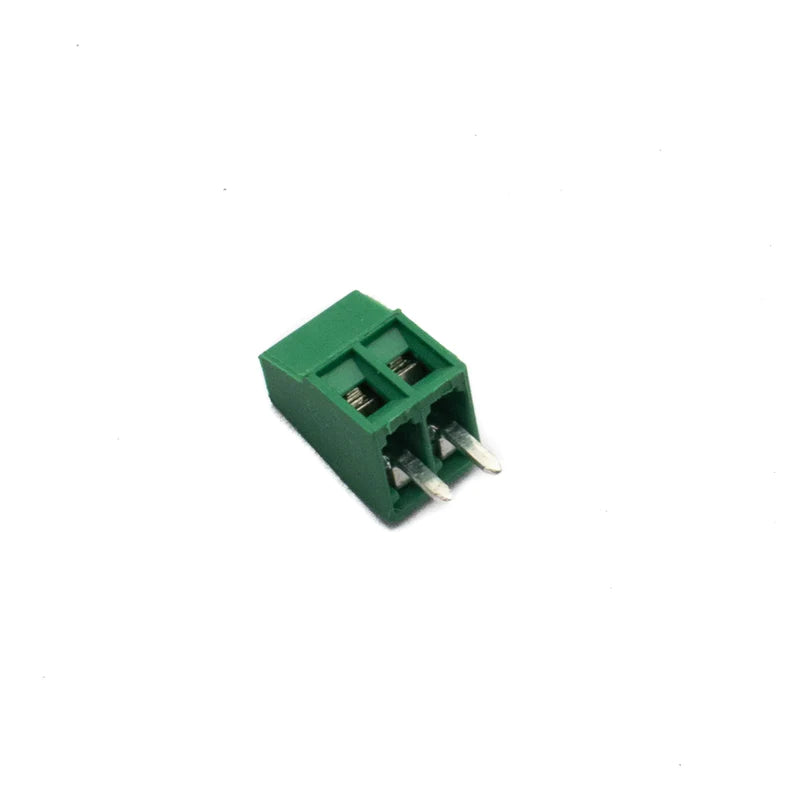

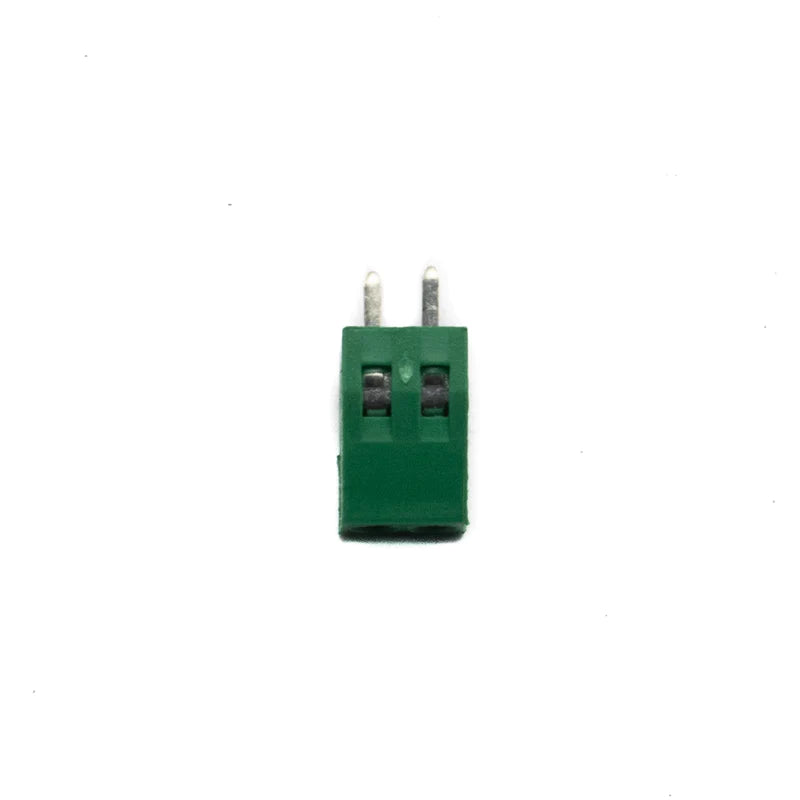

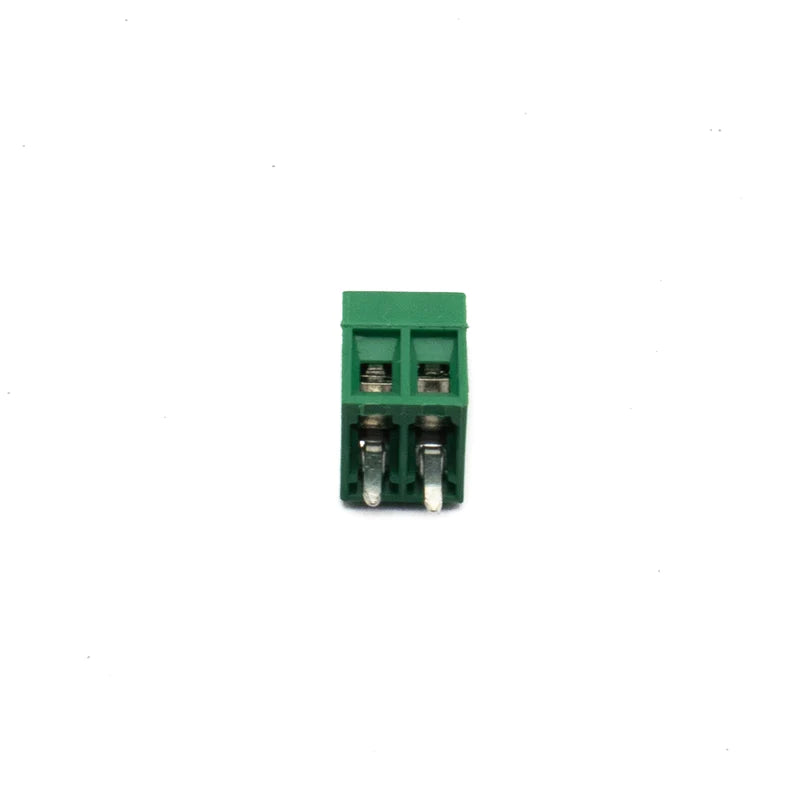

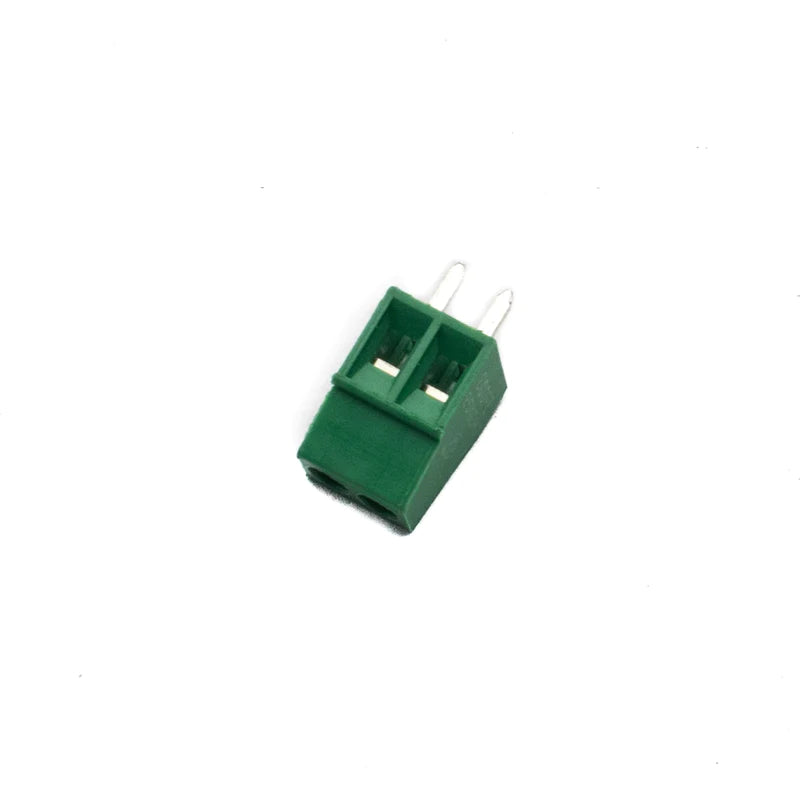

2 Pin Screw Type PCB Terminal Block - 3mm Pitch ZB003

2 Pin Screw Type PCB Terminal Block - 3mm Pitch ZB003

Description This 2 Pin Screw Type PCB Terminal Block - 3mm Pitch ZB003 is a Pluggable Screw Terminal Block with a compact and versatile design. It finds its use in...
27 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-3179
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Terminal Block
View full product details

Description

This 2 Pin Screw Type PCB Terminal Block - 3mm Pitch ZB003 is a Pluggable Screw Terminal Block with a compact and versatile design. It finds its use in connecting wires to the PCB. Due to its small size, the terminal block connects two conductors on a PCB, where space is a concern. Wires ranging from 26 to 18 AWG can be screwed into this ZB003 2 Pin PCB Mount Screw terminal block. These terminal blocks have a 150V voltage rating and a current rating of up to 6 amps. One of the coolest features of the 2 pin and 3 pins ZB003 Terminal Connector is that you can slide lock them together to make any size you want, such as 4, 5, 10, or even 20.


SPECIFICATION
Connector Type Screw Terminal Block
Voltage Rating 150V
Current Rating 6A
Pin Pitch 3mm
Wire Range 26-18 AWG
Colour Green
