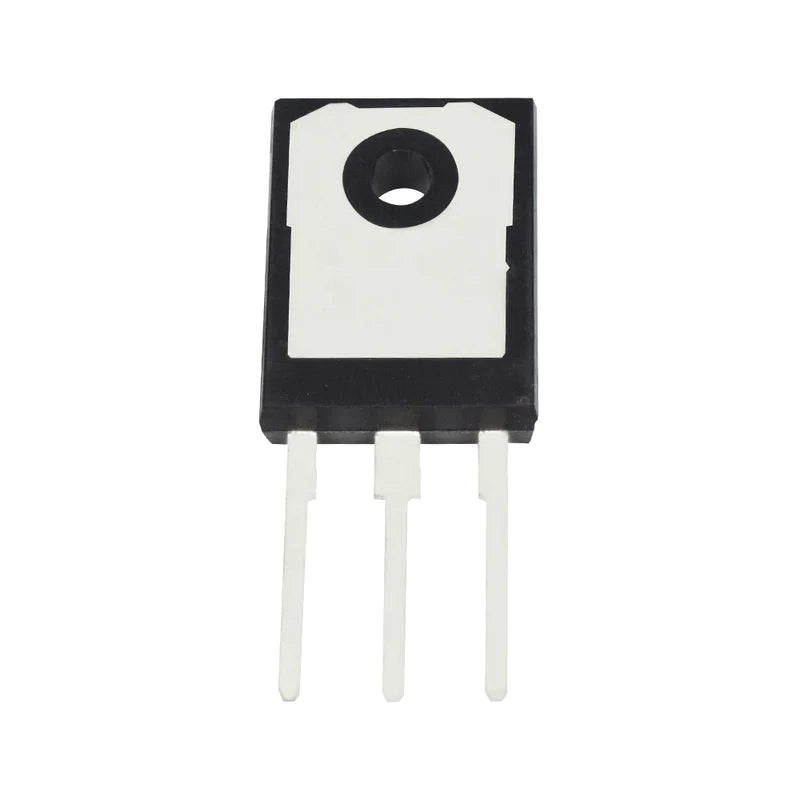

A high voltage switching device with MOS gate that combines the finest qualities of MOSFETs and bipolar transistors is called 20N60A4D. This device combines the low on-state conduction loss of a bipolar transistor with the high input impedance of a MOSFET. Between 25 and 150°C, the significantly smaller on-state voltage loss scarcely varies somewhat. The IGBT being used is a TA49339 development type. The development type TA49372 diode is utilized in anti-parallel. It has designed by Fairchild. This IGBT is perfect for a variety of high voltage switching applications that operate at high frequencies and require minimal conduction losses. This gadget is designed to work with high frequency switch mode power supply.
Features
Applications
Pinout:-
1: Gate, 2: Collector, 3: Emitter
| Product | 20N60A4D |
| Brand | Fairchild |
| Type | Hyper fast diode |
| Mounting Type | Through hole |
| Pins | 3 |
| Maximum operating voltage | 600V |
| Package |
TO-247−3LD
|
| Power dissipation | 260W |
| Maximum lead temperature | 260°C |
| Fall time | 55nS |
| Frequency | 200KHz |
| Junction Temperature | 125 Degree C |
