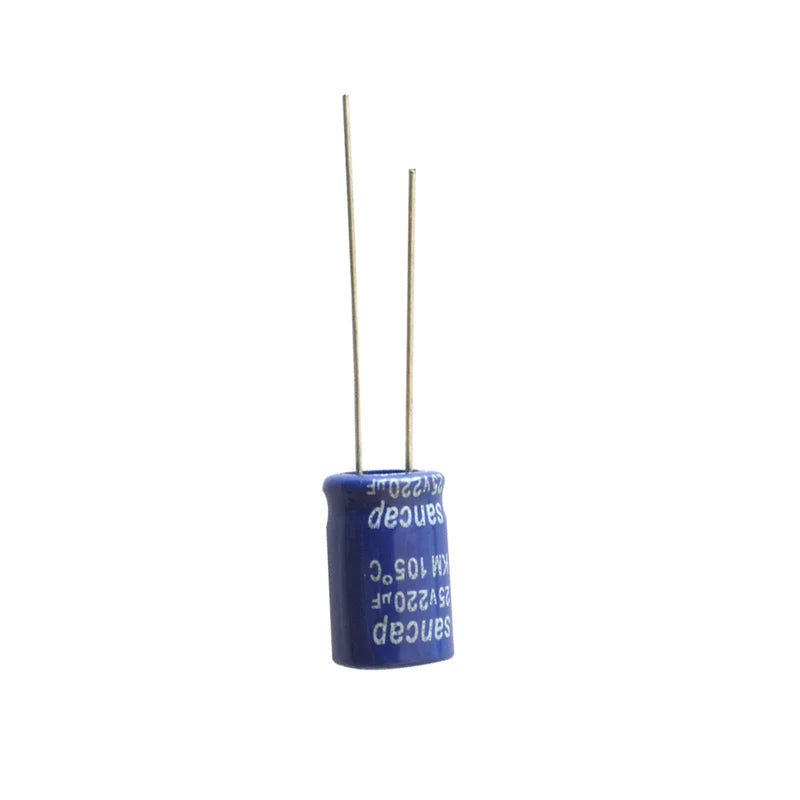

220µF 25V Electrolytic Capacitor

220µF 25V Electrolytic Capacitor

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description This is a 220µF 25V Electrolytic Capacitor made with high purity Etched and Formed Aluminum foil with aluminum oxide dielectric barrier as anode foil. An aluminum cathode foil is...
17 people are viewing this right now

AvailabilityIn stock

SKU: ATC-4398
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Electrolytic Capacitor
View full product details

Description

This is a 220µF 25V Electrolytic Capacitor made with high purity Etched and Formed Aluminum foil with aluminum oxide dielectric barrier as anode foil. An aluminum cathode foil is concentrically wound with a layer of condenser-grade paper in between. After impregnation with electrolyte, the wound element is housed in an Aluminium can and then hermetically sealed using a rubber bung to form an Aluminium electrolytic capacitor. The most crucial advantage of electrolytic capacitors is the higher capacitance ratio to dimensions compared with other capacitors. This is principally due to the microscopically thin dielectric layer, which produces large capacitance per unit area.

SPECIFICATION
Make
Not Specified
Capacitor Value 220µF
Voltage 25V
Type Electrolytic Capacitor
Size 8x12mm
Max Operating Temperature 105°C
Tolerance ±20%
Mounting Type  Through Hole
Quantity
100
