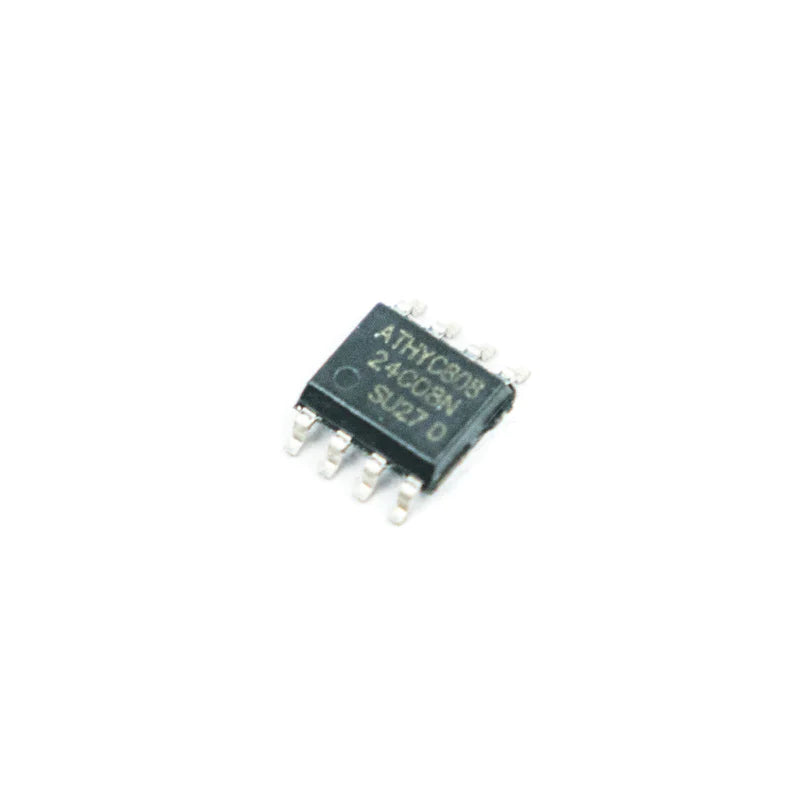

24C08 8Kb Two-Wire Serial EEPROM

24C08 8Kb Two-Wire Serial EEPROM

₹ 0.00
₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The  24C08 provides 8192 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 1024 words of 8 bits each. The device is optimized for use in many...
27 people are viewing this right now

Availability: In stock

SKU: ATC-4102
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Controller IC
View full product details

Description

The  24C08 provides 8192 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 1024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low- power and low voltage operation are essential. In addition the 24C08 IS is available in 1.8 (1.8V to 5.5 V) version .

 Features

  • Low-voltage and Standard-voltage Operation 1.8 to 5.5V
  • Operating Ambient Temperature: -40°C to +85°C
  • Internally organized 1024 X 8 (8K)
  • Two-wire Serial Interface
  • Schmitt Trigger, Filtered Inputs for Noise Suppression
  • Bidirectional Data Transfer Protocol
 SPECIFICATION
Memory 1024 X 8 (8K)
DC Supply Voltage 4.5V to 5.5V
Mounting style SMD
Ambient temperature with power applied -65°C to +125°C
ESD protection on all pins ≥ 4 kV
Storage temperature -65°C to +150°C
