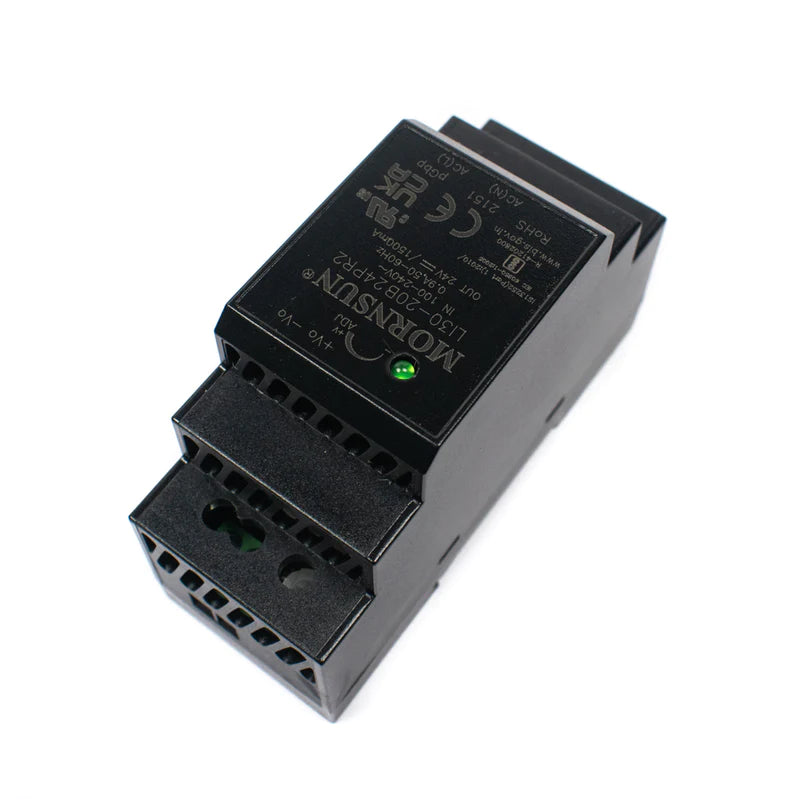

24V 1.5A Mornsun Power Supply (LI30-20B24PR2)

24V 1.5A Mornsun Power Supply (LI30-20B24PR2)

Description LI30-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective, energy-efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international...
20 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2635
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Mornsun Power Supply SMPS
View full product details

Description

LI30-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective, energy-efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety specifications that meet IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These lightweight AC-DC converters also have an extremely compact design for space-saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.

FEATURES

  • Universal 85-264VAC or 120-370VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range -40℃ to +70℃
  • High I/O isolation test voltage up to 4000VAC
  • Industrial product technology design
  • Over-voltage class III (Designed to meet EN61558-1 safety standards)
  • Low standby power consumption, high efficiency
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • Withstand 300VAC surge input for 5s
  • DIN rail TS35X7.5/ TS35X15 mountable
SPECIFICATIONS
Brand Mornsun
Model LI30-20B24PR2
Output Voltage 24V
Max. Output Current 1.5A
Power 36W
Adjustable Voltage 21.6-29V
