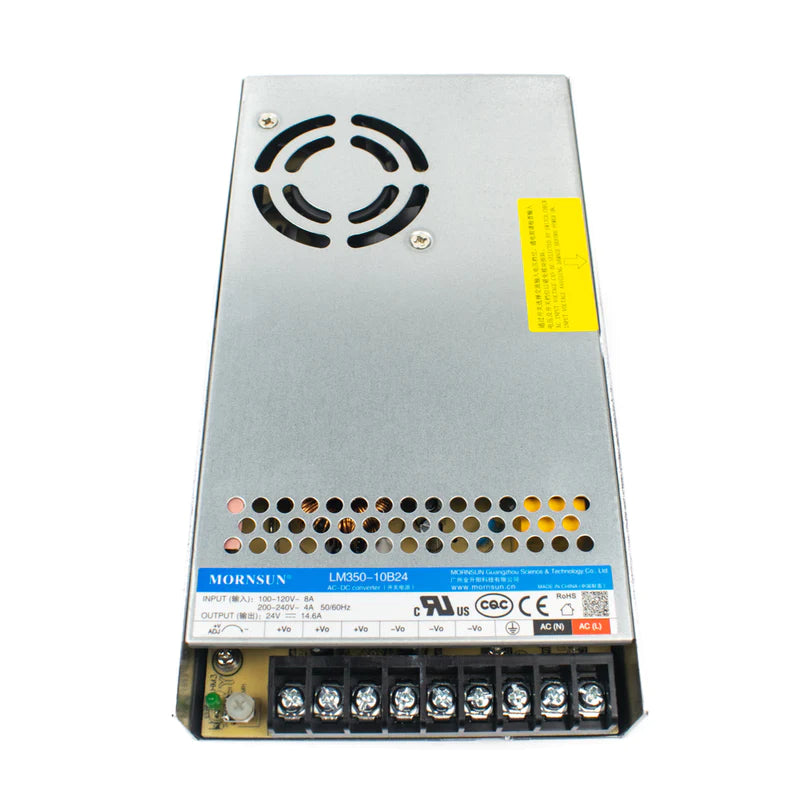

24V 14.6A Mornsun Power Supply ( LM350-10B24)

24V 14.6A Mornsun Power Supply ( LM350-10B24)

Description LM350-10Bxx series is one of Mornsun’s enclosed AC-DC switching power supplies. It features selectable AC input and at the same time accepts DC input voltage, is cost-effective, low no-load...
26 people are viewing this right now

Availability: In stock

Ask For Price
SKU: ATC-2637
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Mornsun Power Supply SMPS
View full product details

Description

LM350-10Bxx series is one of Mornsun’s enclosed AC-DC switching power supplies. It features selectable AC input and at the same time accepts DC input voltage, is cost-effective, low no-load power consumption, high efficiency and high reliability. These power supplies offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

FEATURES

  • Selectable AC input range: 90 - 132VAC/180 - 264VAC
  • DC input range: 240 - 370VDC
  • Ultra-low standby power consumption < 0.75W @230VAC
  • Operating ambient temperature range: - 30℃ to +70℃
  • LED indicator for power ON
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • Built-in DC fan
  • Operating up to 5000m altitude
SPECIFICATIONS
Brand Mornsun
Model LM350-10B24
Output Voltage 24V
Max. Output Current 14.6A
Power 350W
Adjustable Voltage 21.6-28.8V
