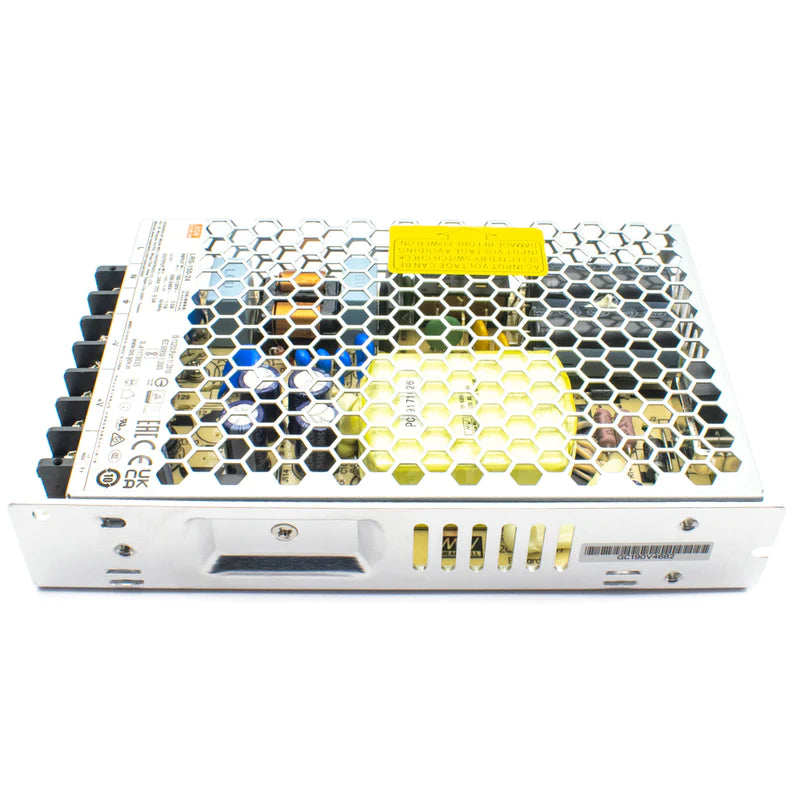

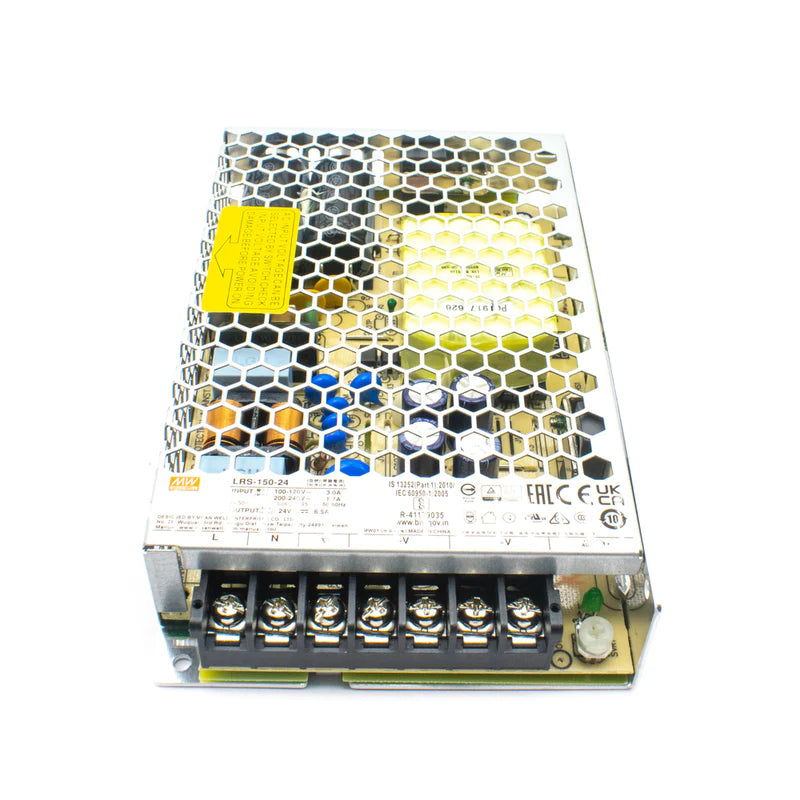

24V 150W Meanwell SMPS (LRS-150-24)

Meanwell's LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design. The AC input is  85~264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 24V. The SMPS has high efficiency up to 89%, the design is of metallic mesh case which enhances the heat dissipation of  LRS-150 that the whole series operates from -30°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.5W), which allows the end system to easily meet the worldwide energy requirement. Meanwell's  LRS-150 has complete protection functions and 5G antivibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943. LRS-150 series can be used for many purposes with the best performance from it.

Pinout

Features

• AC input range selectable by switch
• Protections from Short circuit, Overload, Over voltage and over temperature.
• Cooling by free air convection
• It has a LED for indicating power on.
• 100% full load burn-in test
• Using 105°C long life electrolytic capacitors for better performance
• Withstand 300VAC surge input for 5 second
• Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances
• High operating temperature up to 70°C
• Miniature size and 1U low profile
• Withstand 5G vibration test
• No-load power consumption<0.5W
• High efficiency, long life and high reliability

SPECIFICATIONS
