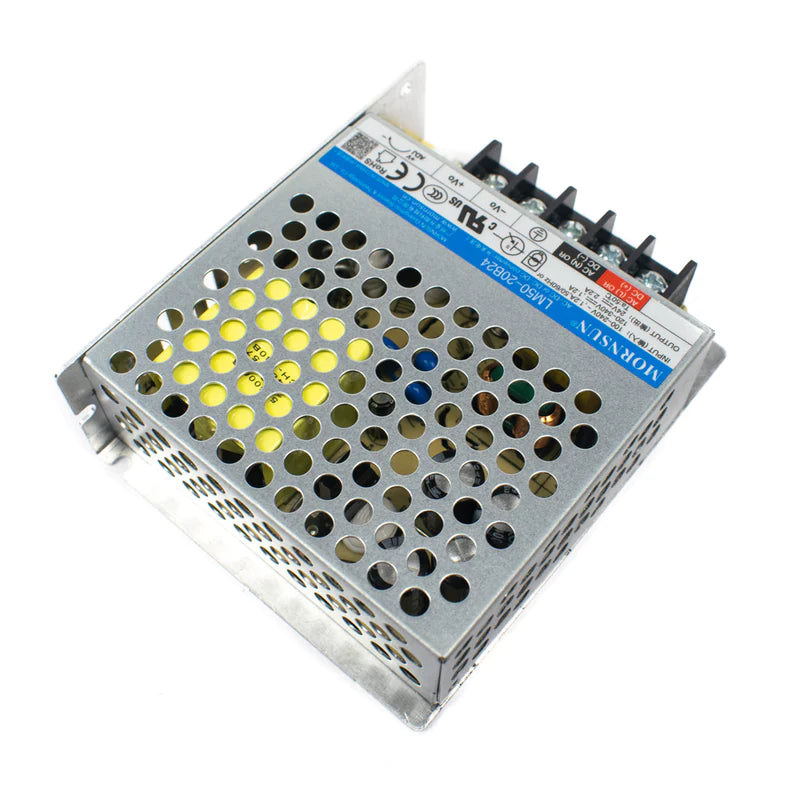

24V 2.2A Mornsun Power Supply (LM50-20B24)

24V 2.2A Mornsun Power Supply (LM50-20B24)

₹ 0.00
₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description LM50-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supplies. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no-load power...
28 people are viewing this right now

Availability: In stock

SKU: ATC-4439
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections:
View full product details

Description

LM50-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supplies. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no-load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

FEATURES

  • Universal 85 - 264VAC or 120 - 370VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Low standby power consumption, high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m
SPECIFICATIONS
Brand Mornsun
Model LM50-20B24
Output Voltage 24V
Max. Output Current 2.2A
Power 52.8W
Adjustable Voltage Range 21.6-28.8V
