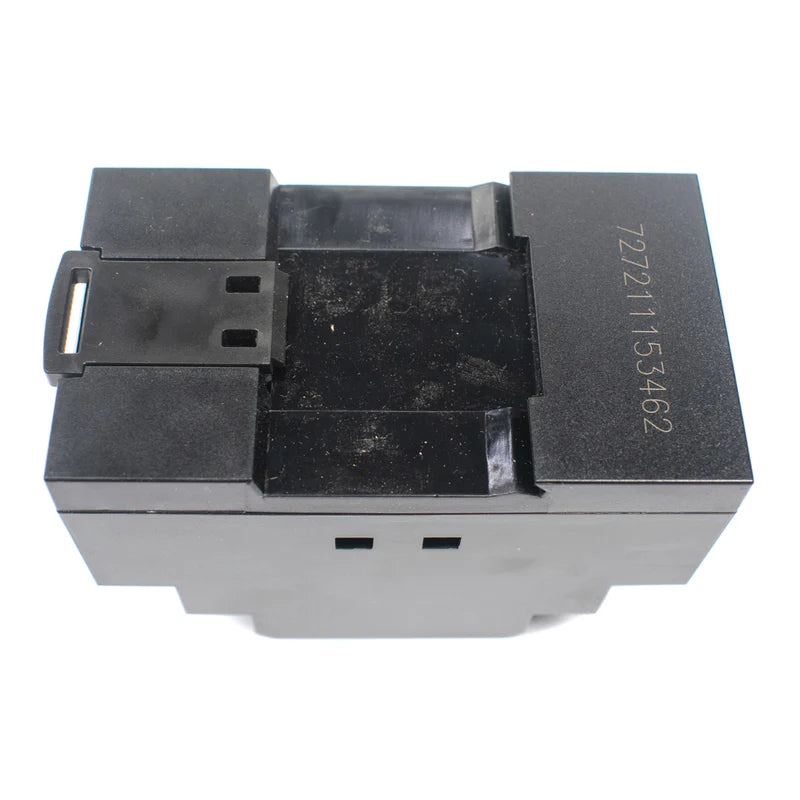

24V 2.5A Mornsun Power Supply (LI60-20B24PR2)

LI60-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective, energy-efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety specifications that meet IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These lightweight AC-DC converters also have an extremely compact design for space-saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.

FEATURES

• Universal 85-264VAC or 120-370VDC input voltage
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range: -40℃ to +70℃
• High I/O isolation test voltage up to 4000VAC
• Industrial product technology design
• Over-voltage class III (Designed to meet EN61558-1 safety standards)
• Low standby power consumption, high efficiency
• Low ripple & noise
• Output short circuit, over-current, over-voltage protection
• Withstand 300VAC surge input for 5s
• DIN rail TS35X7.5/ TS35X15 mountable

SPECIFICATIONS
