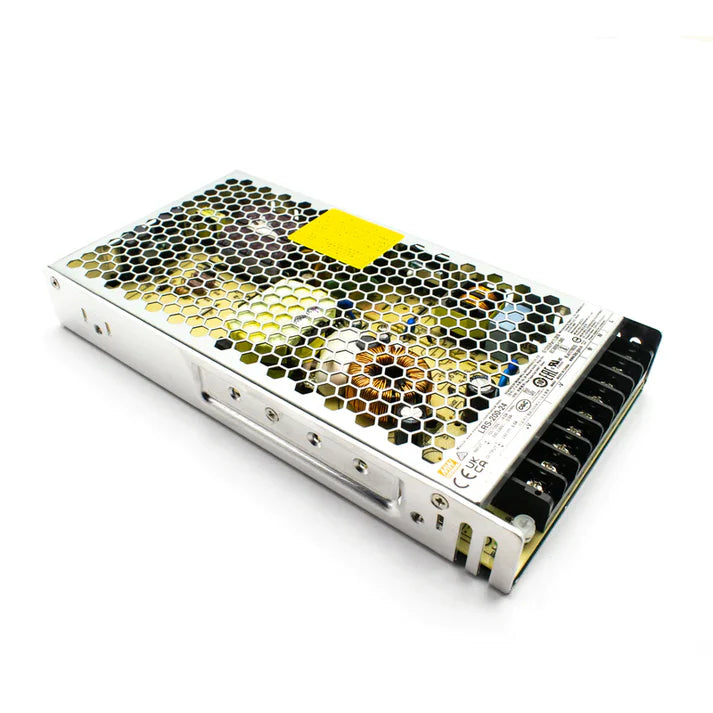

24V 200W Meanwell SMPS (LRS-200-24)

24V 200W Meanwell SMPS (LRS-200-24)

Description LRS-200-24 is a 211W 24V 8.8A single-output enclosed type power supply with 30mm of low profile design. It supports input power of 100-120V AC @4A, 200-240V AC @2.0A and...
25 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2651
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Meanwell SMPS
View full product details

Description

LRS-200-24 is a 211W 24V 8.8A single-output enclosed type power supply with 30mm of low profile design. It supports input power of 100-120V AC @4A, 200-240V AC @2.0A and provides a 24V output with a maximum load current of 8.8A. In addition to the high efficiency of up to 90%, the design of the metallic case enhances the heat dissipation of LRS-200-24 that operates from -25°C to 70°C under air convection without a fan. Delivering an extremely low no-load power consumption (less than 0.75W), allows the end system to easily meet the worldwide energy requirement. Meanwell's LRS-200-24 has complete protection functions and 5G anti-vibration capability; it complies with the international safety regulations such as UL 60950-1. Meanwell's LRS-200-24 is a high-quality Industrial Grade SMPS. The LRS200-24 SMPS is a 200 watt SMPS that outputs 24 volts. Meanwell's LRS-200 -24 switching power supply has a mesh casing and is simple to install.

Feature

  • AC input range selectable by switch
  • Withstand 300V AC surge input for 5 second
  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature
  • Cooling by free air convection
  • 1U low profile
  • Withstand 5G vibration test
  • LED indicator for power on
  • No-load power consumption<0.75W
  • 100% full load burn-in test
  • High operating temperature up to 70°C
  • High efficiency, long life and high reliability
SPECIFICATIONS
Model LRS-200-24
Brand Meanwell
DC Voltage 24V
Rated Current 8.8A
Rated Power 211W
Ripple & Noise 150mVp-p
Voltage Adj. Range 21.6V~28.8V
Voltage Tolerance 1%
Line Regulation 0.5%
Load Regulation 0.5%
Setup, Rise Time 1300ms, 50ms/230V AC,
1300ms, 50ms/115V AC at full load
    Hold Up Time

    16ms/230V AC, 12ms/115V AC at full load

    Voltage Range

    90~132V AC/ 180~264V AC by switch 240~370V DC (switch on 230V AC)

    Frequency Range

    47~63Hz

    Efficiency

    89.5%

    AC Current

    4A/115V AC, 2.0A/240V AC

    Over Load 110~140% rated output power
    Hiccup mode recovers automatically after the fault condition is removed.
      Over Voltage

      28.8V~33.6V

      Working Temperature

      -25°C to 70°C

      Working Humidity

      20~90%

      Size

      215x115x30mm
