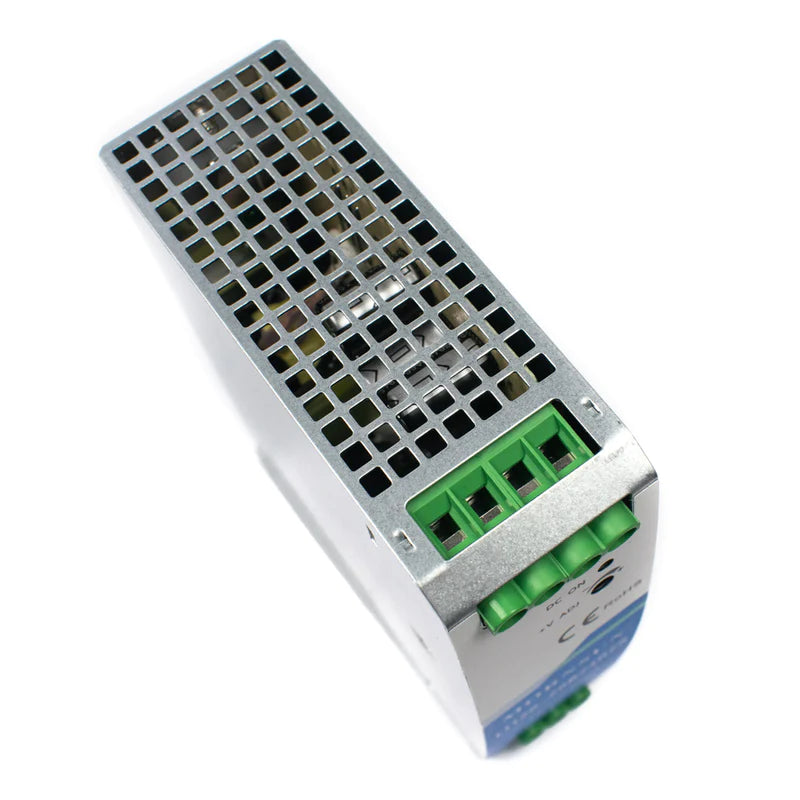

24V 5A Mornsun Power Supply (LI120-20B24R2S)

24V 5A Mornsun Power Supply (LI120-20B24R2S)

Description LI120-20BxxR2S is Mornsun AC-DC converter series featuring a cost-effective, energy-efficient green power supply solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to...
15 people are viewing this right now

Availability: In stock

Ask For Price
SKU: ATC-2632
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Mornsun Power Supply
View full product details

Description

LI120-20BxxR2S is Mornsun AC-DC converter series featuring a cost-effective, energy-efficient green power supply solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise for industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. These lightweight AC-DC converters have an extremely compact design and the standard rail installation for space-saving. With good EMC performance, compliant with international UL61010-1, UL508, EN62368-1 standards for EMC and safety.

FEATURES

  • Universal 90 - 264VAC or 127 - 370VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -20℃ to +60℃
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • DIN rail TS-35/7.5 or 15 mountable
  • Ultra-slim design: suitable for small chassis and narrow space installation
  • Safety according to UL61010, UL508, EN62368
SPECIFICATIONS
Brand Mornsun
Model LI120-20B24R2S
Output Voltage 24V
Max. Output Current 5A
Power 120W
Adjustable Voltage Range 24-28V
