Description :-

2N3773 NPN High Power Transistor 140V 16A TO-3 Metal Package. The 2N3773 is a 140V Silicon NPN Complementary Power Transistor designed for high power audio, disk head positioners and other linear applications. The transistor can also be used in power switching circuits such as relay or solenoid drivers, DC-DC converters or inverters.

 Features :-

• Transistor Polarity:- NPN
• Configuration:- Single
• Collector- Emitter Voltage VCEO Max:- 140 V
• Collector:- Base Voltage VCBO: 160 V
• Maximum DC Collector Current:- 16 A
• Pd :– Power Dissipation: 150 W
• Operating Temperature Range:- -65°C ~ +200°C
• Continuous Collector Current:- 16 A
• Product Type: BJTs :– Bipolar Transistors
• Mounting Style:- Through Hole
• Package/Case:- TO-3 Metal Package

 Application :-

• High Power Audio
• Disk Head Positioners

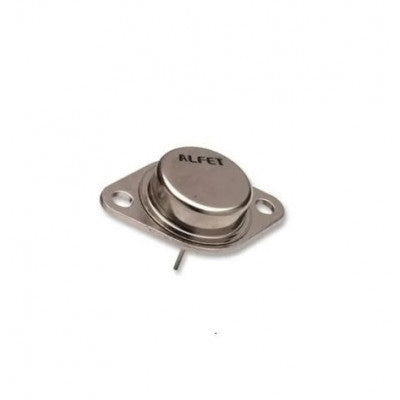

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
