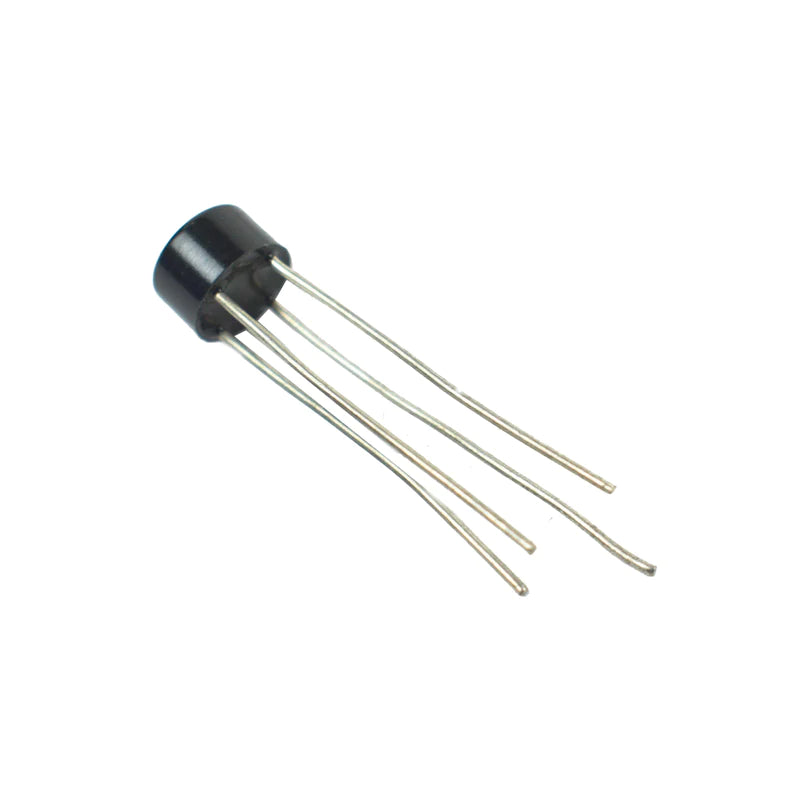

2W10 1000V 2A Single Phase Bridge Rectifier

2W10 1000V 2A Single Phase Bridge Rectifier

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The 2W10 is  a Single Phase Bridge Rectifier . The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of...
15 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3723
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Bridge Rectifier
View full product details

Description

The 2W10 is  a Single Phase Bridge Rectifier . The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this IC can handle is around  2A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.0V. It has high efficiency and a  surge current capability of 60A. If you are looking for a compact IC for rectification application this can be a good choice.

Features

  • Diffused Junction
  • High Current Capability
  • High Reliability
  • High Surge Current Capability
  • Ideal for Printed Circuit Boards
SPECIFICATION
Model 2W10
Type Bridge Rectifier Diode
Dc blocking voltage 1000 v
Max Vrms  value  700 v
Operating Temperature range  -55°C to 150°C
Storage Temperature range  -55°C to 150°C
