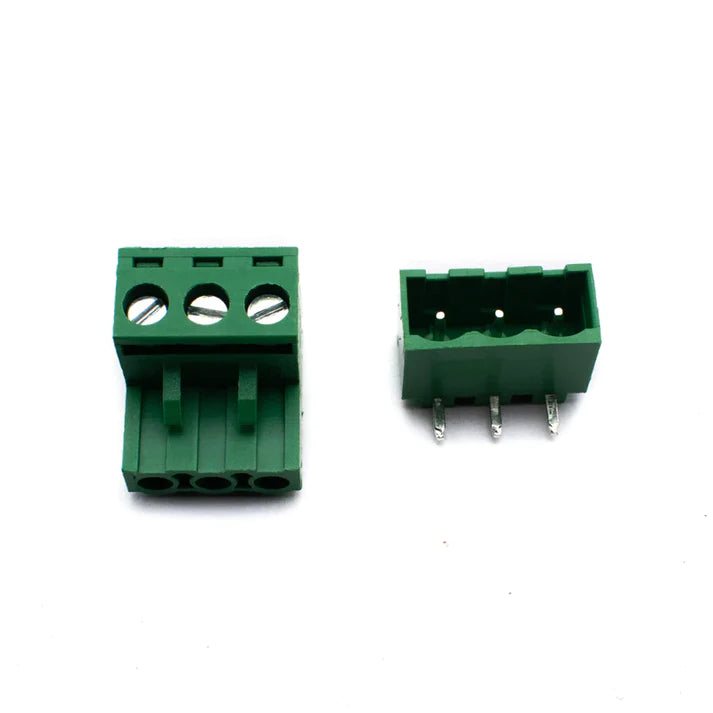

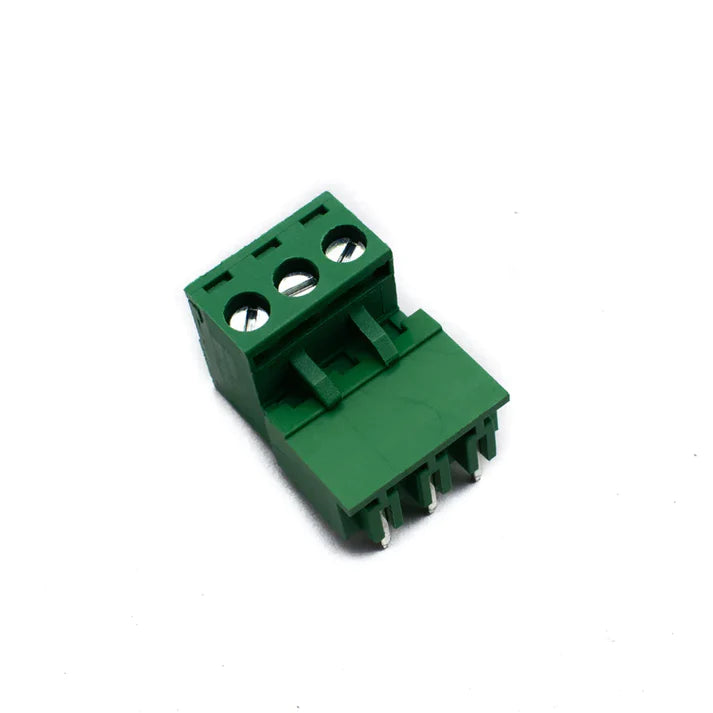

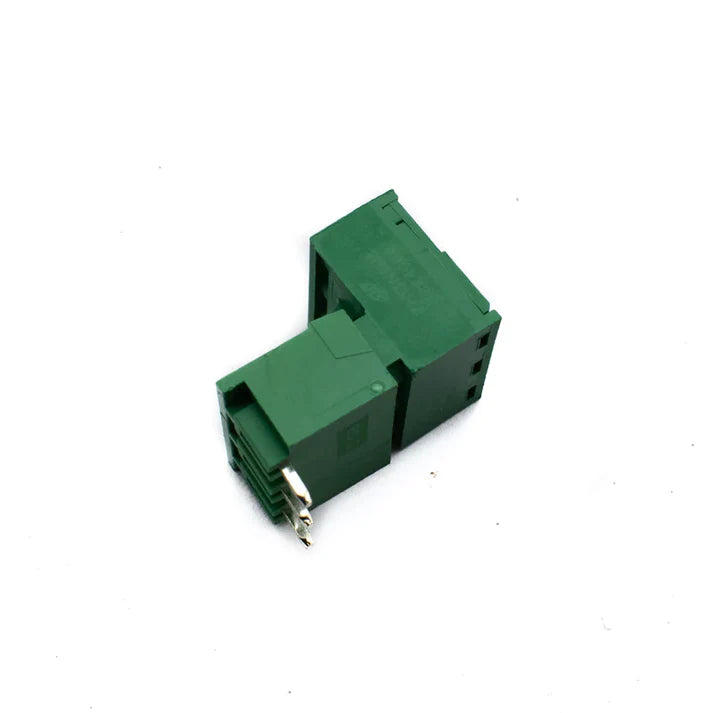

3 Pin Male & Female Pair Plug-in Screw Terminal Block Connector

3 Pin Male & Female Pair Plug-in Screw Terminal Block Connector

Regular price ₹ 175.00
Regular price ₹ 199.00 Sale price ₹ 175.00
Sold Out
Tax included. Shipping calculated at checkout.
Description :- It's a 3 Pin Male-Female Pair Plug-in Screw Terminal Block Connector Box Type. This  PCB Connector can handle AC 300V 15A. The 3 Pin 5mm pitch Pluggable type PCB terminal...
25 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3197
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Terminal Block
View full product details

Description :-

It's a 3 Pin Male-Female Pair Plug-in Screw Terminal Block Connector Box Type. This  PCB Connector can handle AC 300V 15A. The 3 Pin 5mm pitch Pluggable type PCB terminal block is a type of electronic component that provides a secure and reliable way to connect wires to printed circuit boards (PCBs). The “3 pin” refers to the number of connections available on the terminal block.

Features :-
  • Material :- Plastic
  • Connector Type :-  Male and Female Screw Terminal pair, Plug-in
  • number of Pins :- 3
  • Pitch :- 5.08mm
  • Colour :- Green
  • Wire :- 28-12AWG
SPECIFICATIONS :-
  • Type :- 3 Pin Female Terminal + 3 pin Male Right Angle
  • Pitch :- 5.08mm
  • Current Rating :- 15A , 300V AC
  • AWG Diameter :- 28-12
  • Termination :- PCB Mount
  • Connector :- PCB Terminal Block
  • Mounting Style :- Through Hole

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
