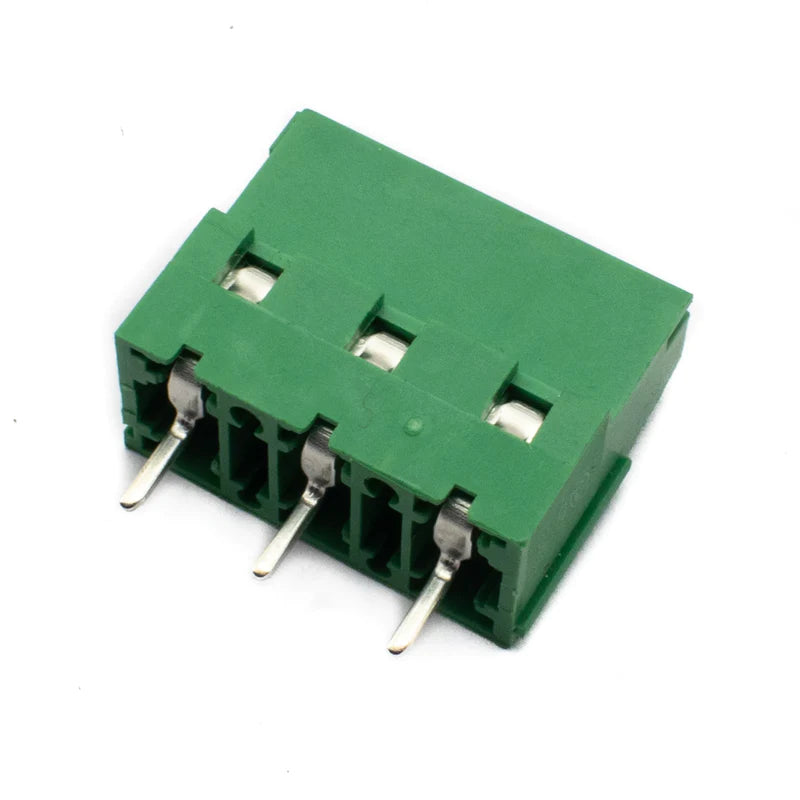

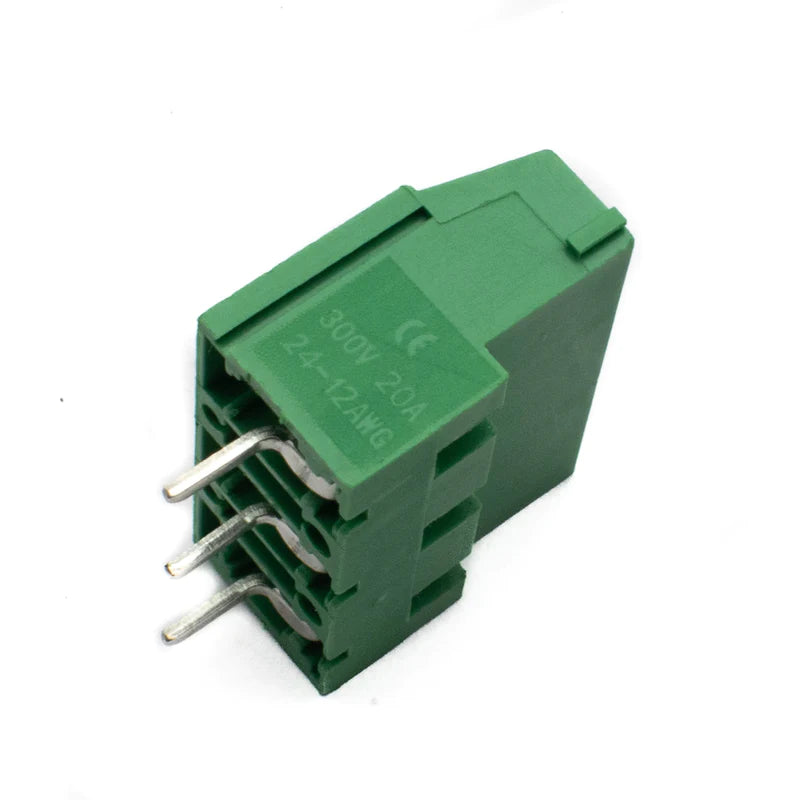

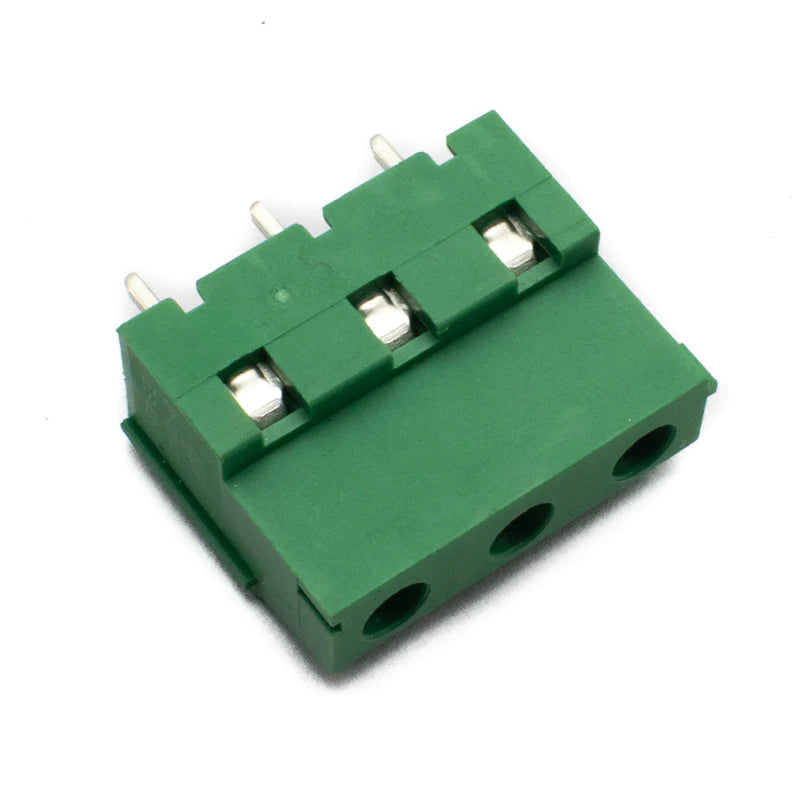

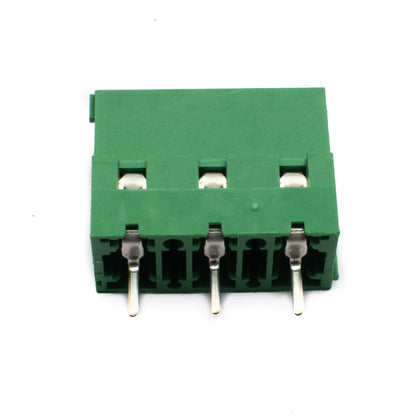

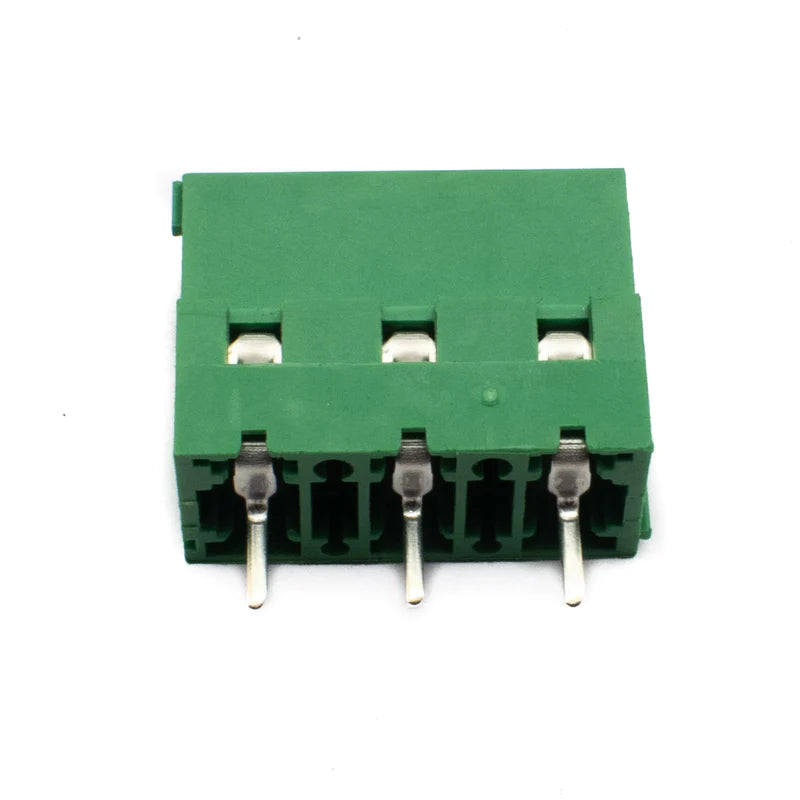

3 Pin PCB Terminal Block 7.5mm Pitch 20A Rating ZB429

3 Pin PCB Terminal Block 7.5mm Pitch 20A Rating ZB429

Description Terminal blocks (also known as screw terminals) are electrical connectors that allow you to connect wires in the same circuit without cutting or splicing them. Screw with 3 pins....
16 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-3186
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Terminal Block
View full product details

Description

Terminal blocks (also known as screw terminals) are electrical connectors that allow you to connect wires in the same circuit without cutting or splicing them. Screw with 3 pins. The Terminal Block is a multifunctional and small terminal block. It's used to connect wires to the circuit board. The terminal block's small size allows it to connect two conductors on a PCB where space is at a premium. The wires are held in place by screws on this terminal block. It can hold wires ranging in size from 24 to 12 AWG Allowed wire size. This terminal block is perfect for tiny rack systems or telecoms equipment that requires a lot of contacts. Each terminal has a single corresponding pin separated every (5mm) (if there is sufficient clearance from nearby components). It has tin-plated brass for pin header and has nickel-plated brass contacts. The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant (UL94-0), and has good insulation properties.

FEATURES:

  1. Saves space due to the small design
  2. Screw connection with tension sleeve
  3. Maximum contact force ensures a low-temperature rise
  4. Connection in accordance with EN-VDE Standard.
  5. Pin header: Tin-plated brass.
  6. Contacts: Nickel-plated brass.
  7. Strong, compact, lightweight.
  8. Heat resistant.
SPECIFICATIONS

Max. Operating Current

20A

Max. Voltage

300V

Pin Pitch 7.5mm

Material Used

Metal and plastic

Model ZB429-3P

Allowed Wire Size (AWG)

24 ~ 12

No. of contacts

3

L*B*H

22.6*10.6*18mm

Colour Green
