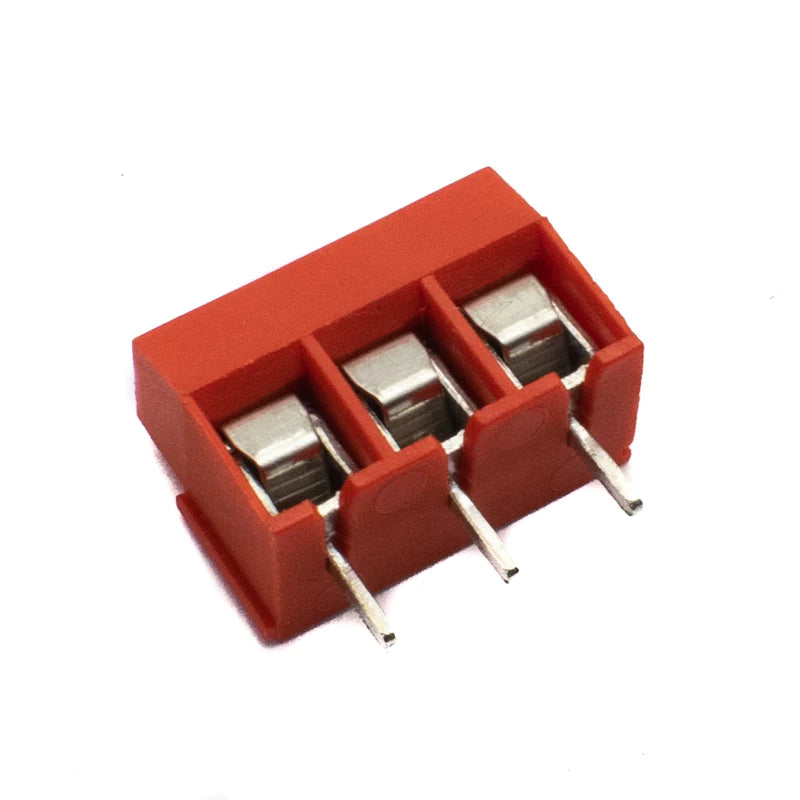

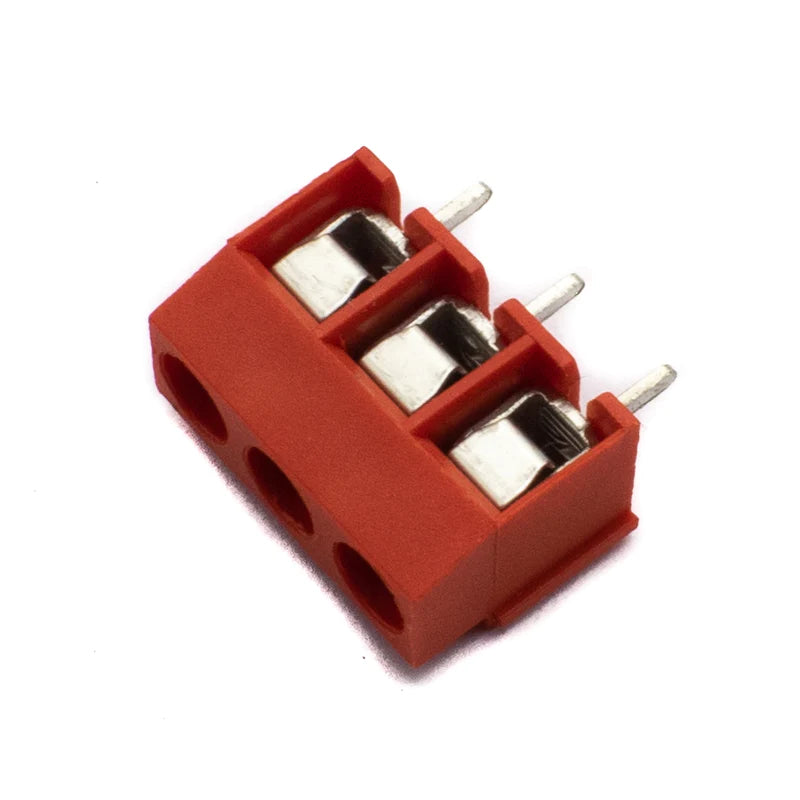

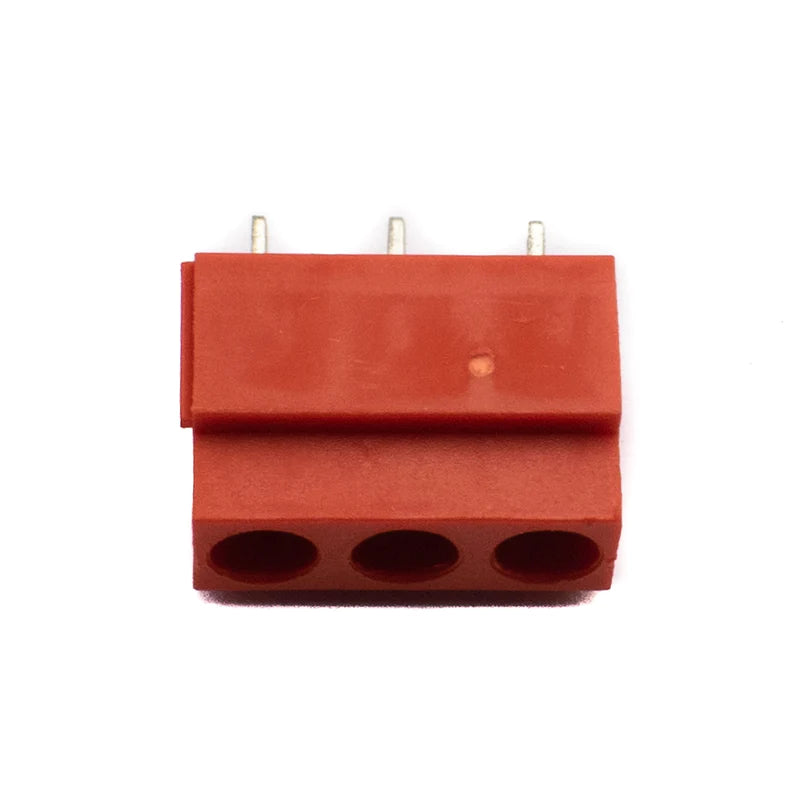

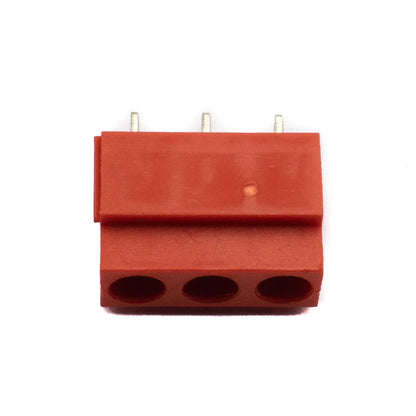

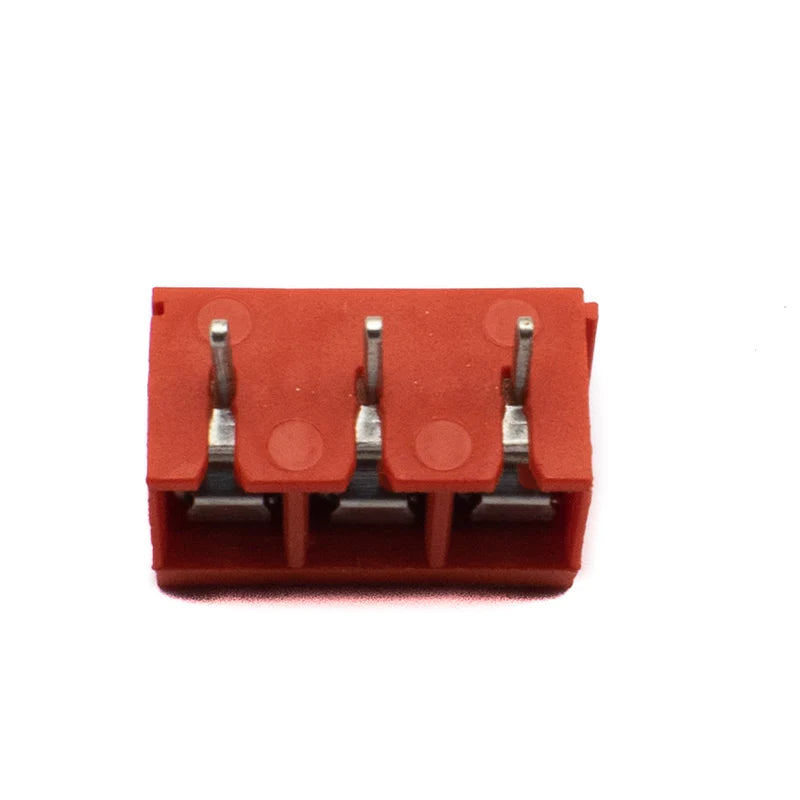

3 Pin Screw Type PCB Terminal Block - 5mm Pitch RED

3 Pin Screw Type PCB Terminal Block - 5mm Pitch RED

Description 3 Pin Screw Type PCB Terminal Block - 5mm Pitch RED is a Pluggable Screw Terminal Block with a compact and versatile design. It finds its use in connecting...
25 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-3200
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Terminal Block
View full product details

Description

3 Pin Screw Type PCB Terminal Block - 5mm Pitch RED is a Pluggable Screw Terminal Block with a compact and versatile design. It finds its use in connecting wires to the PCB. Due to its small size, the terminal block connects two conductors on a PCB, where space is a concern. Wires ranging from 26 to 14 AWG can be screwed into this YX126 3 Pin PCB Mount Screw terminal block. These terminal blocks have a 300V voltage rating and a current rating of up to 10 amps. One of the coolest features of the 2 pin and 3 pin YX126 Terminal Connector is that you can slide lock them together to make any size you want, such as 4, 5, 10, or even 20.

SPECIFICATION
Connector Type Screw Terminal Block
Voltage Rating 300V
Current Rating 10A
Pin Pitch 5.04mm
Wire Range 26-14 AWG
Colour Red
Model YX126-3P
