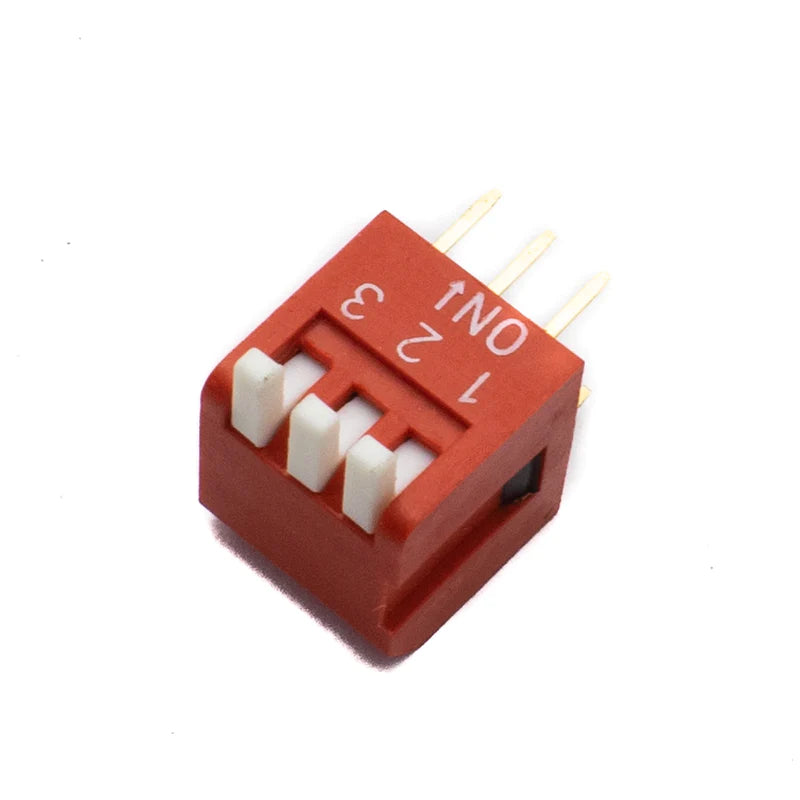

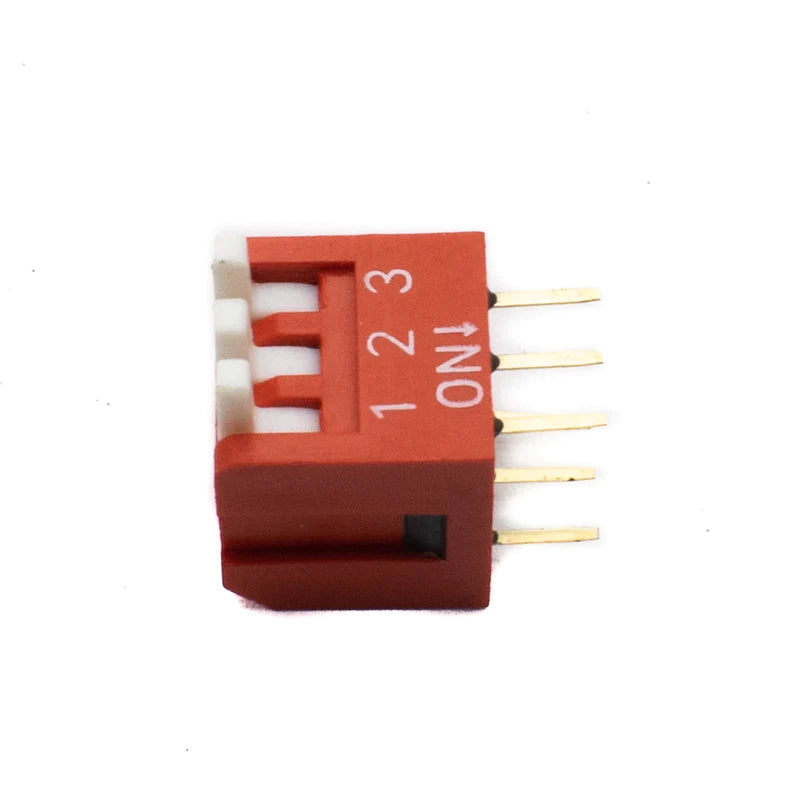

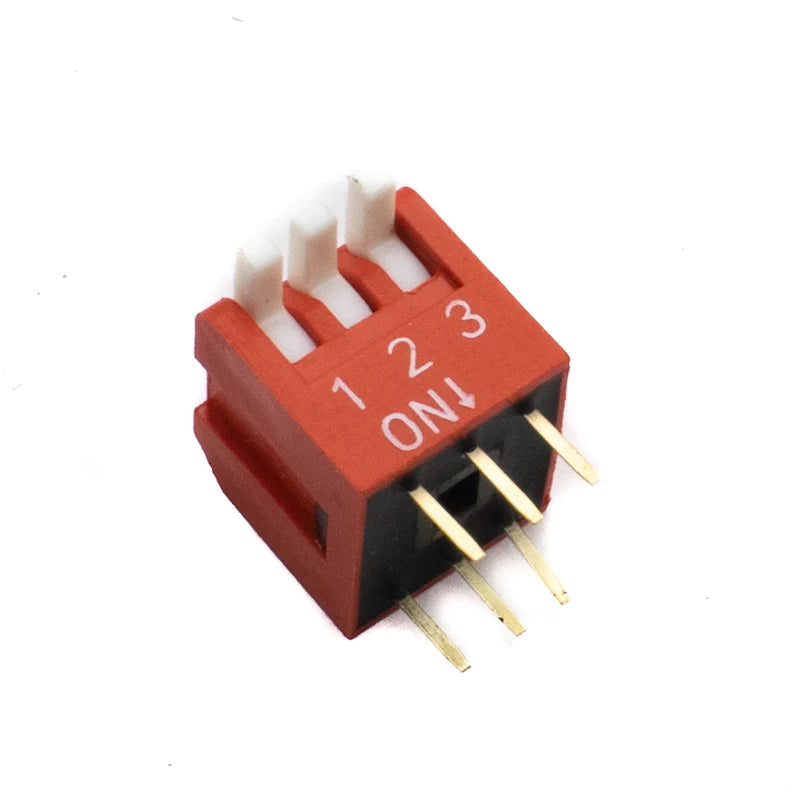

3 Way DIP SPST Switch Right Angle (Piano Type)

3 Way DIP SPST Switch Right Angle (Piano Type)

Description A dual in-line package (DIP) switch is a manual electronic package that is composed of a series of tiny switches. It has a rectangular casing and two parallel rows...
26 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2444
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: DIP Switch
View full product details

Description

A dual in-line package (DIP) switch is a manual electronic package that is composed of a series of tiny switches. It has a rectangular casing and two parallel rows of connecting terminals. whose position changes the operating mode of a device. DIP switches help configure computer peripherals, such as hard drives, modems, sound cards, and motherboards. This 3 Way DIP SPST Switch is the simplest type of switch in which a single toggle either connects or disconnects a single terminal from other. This switch is designed to be conveniently mounted on printed circuit boards to provide various ranges of input to the electronic device. Due to its design, it is also known as a piano switch.

SPECIFICATIONS
Max. Operating Voltage 30V DC
Max. Operating Current 150mA
Contact Resistance <100mΩ
Operating Temperature -20°C to 80°C
Colour Red and White
Pitch 2.54mm
Mounting Type Through Hole
Number of Connecting Pins 6
Position 3
Dimension 9.2x12.6x9.4mm
