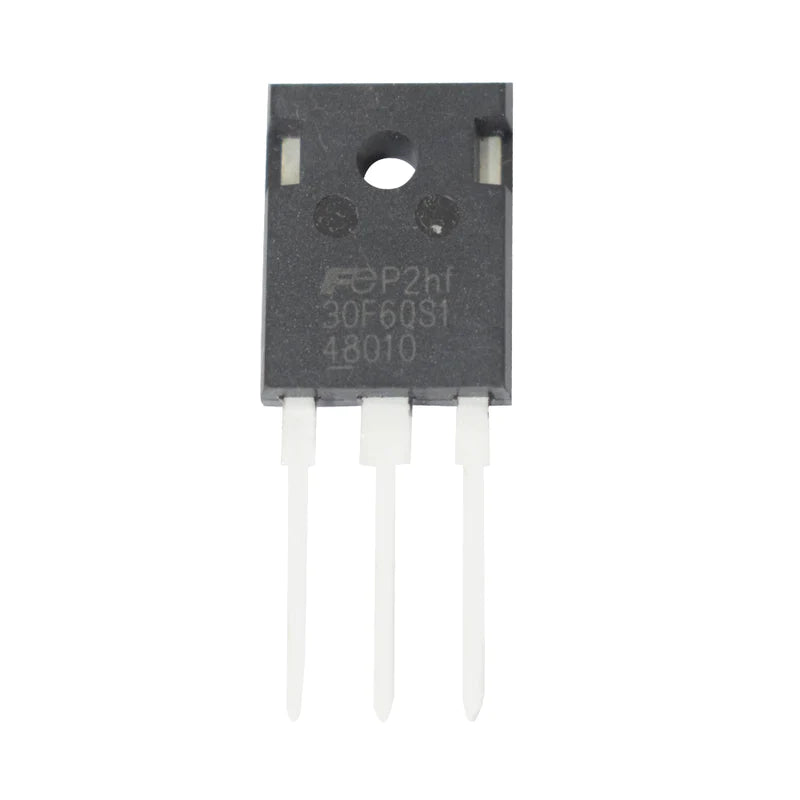

30F60S1 N-Channel Enhancement Mode Power MOSFET

30F60S1 N-Channel Enhancement Mode Power MOSFET

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description 30F60S1  is an N  channel Enhancement mode power MOSFET which is used to switch the power and It's used to control the circuit. It's used to protect the circuit from...
20 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3618
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

30F60S1  is an N  channel Enhancement mode power MOSFET which is used to switch the power and It's used to control the circuit. It's used to protect the circuit from overvoltage. Its operating voltage is 600V, and There are huge applications of power MOSFET in SMPS and UPS. Snubber, free-wheeling diode and general switching applications.

DATASHEET

Features

  • Low Power Loss
  • High-Efficiency
  • High Current Capability
  • High Surge Capability
  • Guarding for Overvoltage Protection
  • It's a Lead free terminal device
SPECIFICATIONS
Model 30F60S1
Package TO-220
Voltage 600V
Drain Current 19A
Max Lead Temperature 300 Degree Centigrade
Power dissipation 250W
Pulse drain current 90A
Operating Temperature 55 to 150° C
