36W 3A Short Distance IR Obstacle Sensor Sweep Hand Sensor

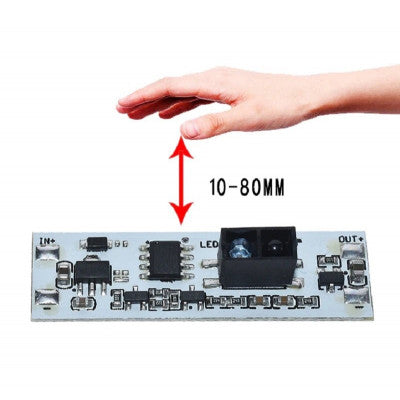

This is IR sensor-based switching module that functions ON and OFF by sweeping palm over it from 10 to 80 mm distance.

This IR sensor can be used in a variety of applications in household appliances as well as automotive industrial applications. The sensitivity of the product can be customized, can penetrate plastic, acrylic, glass, ceramic, and another non-metallic medium, stable performance.

Specifications

• Operating voltage: 12vDC
• Output Voltage: 12 V
• Output type: Double output
• Detection range: adjustable 10-80 MM
• Max Power Load: 36 W
• Delayed off time: none
• Field of application: DC, constant pressure
• Load current: 3A optional
• Standby current: 10mA.

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
