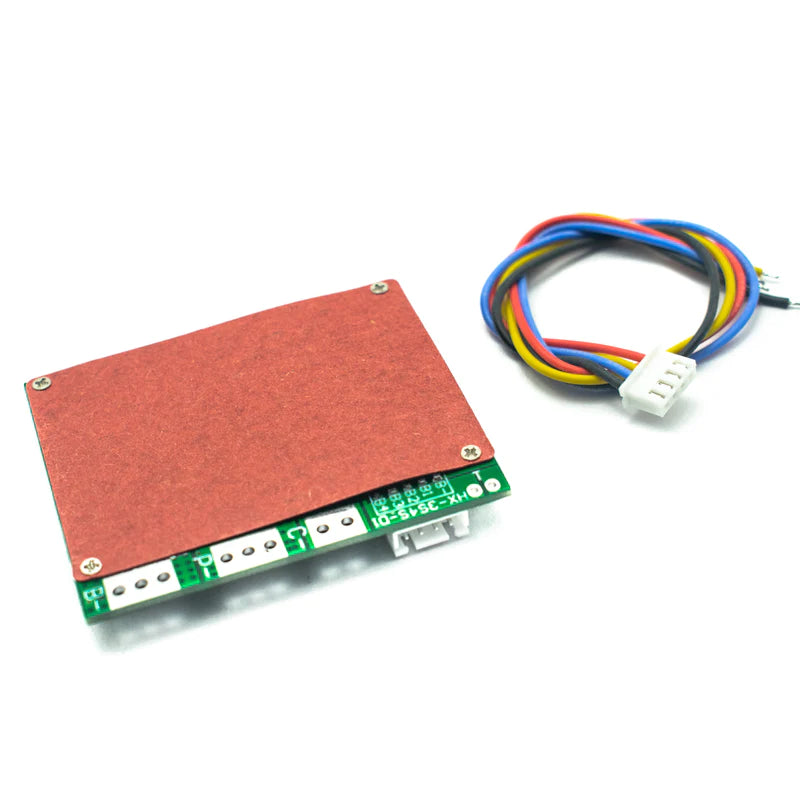

A battery management system (BMS) provides protection during the charging and discharging process, Increases the lifetime of the battery.3S 100A BMS PCB 11.1V 12.6V Li-ion Lithium ion 3 cell 18650 Battery Protection Board. This 3S 100A Lithium-Ion BMS is a high-quality BMS for Lithium-Ion Battery. The module interfaces with 3 Lithium-Ion cells of 3.7V associated in an arrangement so that they make up an 11.1V Battery Pack. The BMS provides Over-discharge protection, over-current protection, and load short circuit protection. This BMS has a Balance Charge feature. The maximum continuous charge/discharge rate is 100A.
| Model | HX-3S-F100A |
| Over Charge Voltage Range | 4.28±0.05V |
| Over Pressure Voltage Range | 2.5±0.05V |
| Max. Working Current | 100A |
| Quiescent Current | <30µA |
| Internal Resistance | 300mΩ |
| Balance Current | 65mA |
| Charging Voltage | 12.6V DC |
| Charge Current Limit | 10A |
| Operating Temperature | -40°C to 50°C |
| Automatic Recovery on the release of a fault condition | Yes |
| Size | 70x60x8.5mm |
| Weight | 60 g |
|---|---|
| Dimensions | 70 × 55 × 10 mm |
