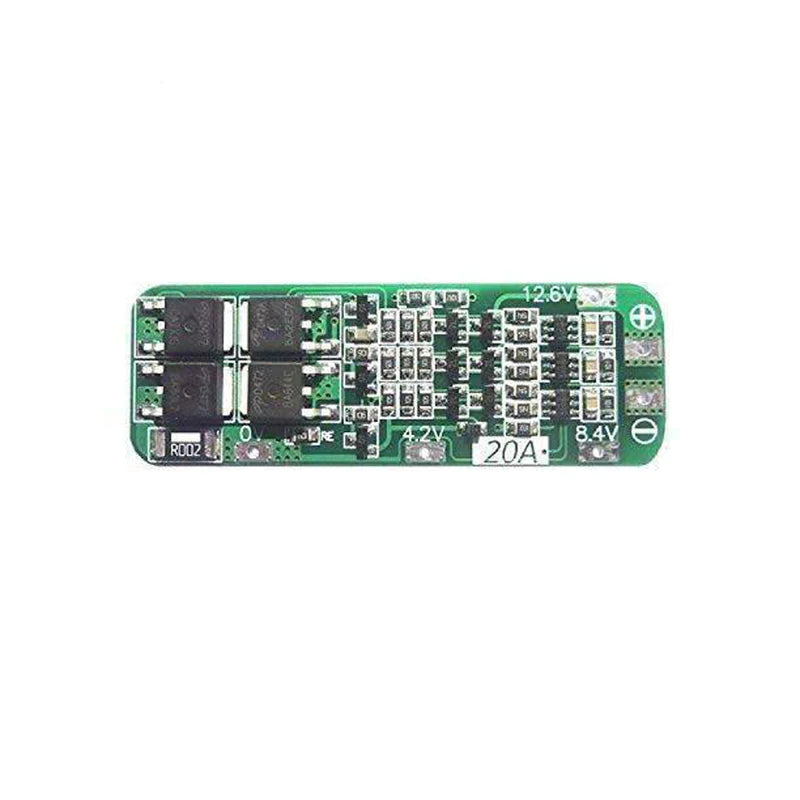

3S 20A 18650 Lithium Battery Protection Board

3S 20A 18650 Lithium Battery Protection Board

Description This 3S 20A 18650 Lithium Battery Protection Board comes with a recovery function-AUTO Recovery. It is suitable for the drills with starting current below 80A, power 135W below. It provides a...
29 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2582
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: BMS
View full product details

Description

This 3S 20A 18650 Lithium Battery Protection Board comes with a recovery function-AUTO Recovery. It is suitable for the drills with starting current below 80A, power 135W below. It provides a continuous discharge of 20A, 100mA balanced current, for electric drill, sprayer, LED lights, or low power inverter.  Reduce the load current use if the cooling method is not so good.

It is best suitable for nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries). Please check the circuit diagram shown in the image for battery connection.

APPLICATIONS:
  1. Small power inverter
  2. Massager battery pack
  3. LED lamp backup power
  4. Electronic products
  5. Solar street lamp battery pack
  6. Monitoring standby power supply.
SPECIFICATIONS
Battery Support Max 3 Cells
Overcharge detection voltage
4.25 ± 0.025 V
Maximum continuous discharge current  20A
Maximum continuous charge current  20A
Dimension (LxW) 60x20 (mm)
