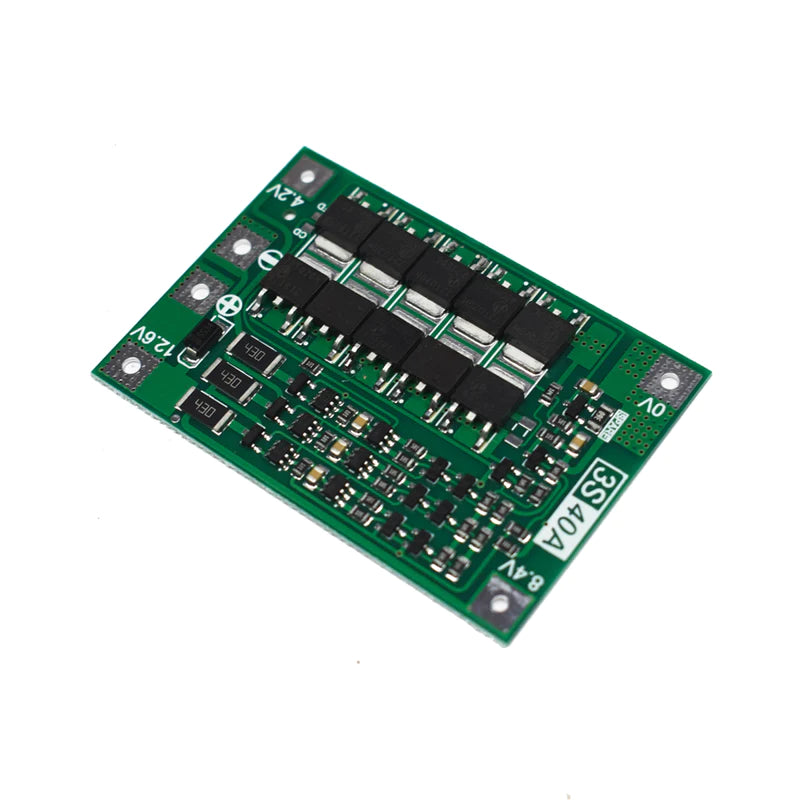

3S 40A 18650 Lithium Ion BMS for 11.1V Battery

3S 40A 18650 Lithium Ion BMS for 11.1V Battery

Description The 3 Series 40A 18650 Lithium Battery Protection Board 11.1V, 12.6V with Balance for Drill Motor Lipo Cell Module has an integrated 10 low load resistance MOS tube and...
17 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2580
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: BMS
View full product details

Description

The 3 Series 40A 18650 Lithium Battery Protection Board 11.1V, 12.6V with Balance for Drill Motor Lipo Cell Module has an integrated 10 low load resistance MOS tube and a recovery function-AUTO Recovery.

For electric drill/sprayer/LED lights/low power inverter, it delivers a continuous discharge of 40A, 100mA balanced current. (If the cooling environment is poor, reduce the current load utilization)

The nominal voltage of 3.6V, 3.7V lithium battery (including 18650, 26650, a polymer lithium battery) with charging voltage ranging from 16.8V to 18.1V. With a continuous charging current of (maximum limit): 20A, the board runs smoothly. The balanced version is suited for beginning currents of less than 80A and power of less than 135W. (with balance).

SPECIFICATION
Charging Voltage 12.6V DC CC/CV
Balance Voltage for Single Cell 4.2V
Max Continuous Charge Current 20A
Max Continuous Discharge Current 40A
Overcharge Detection Voltage 4.25V
Overcharge Release Voltage 4.15V
Over-Discharge Detection Voltage 2.5V
Over-Discharge Release Voltage 3.0V
Over-Current Detection Current 40A
Dimensions 41.6x54.8x3.4mm
External Short Circuit Detection Yes
Automatic Recovery on the release of a fault condition Yes
