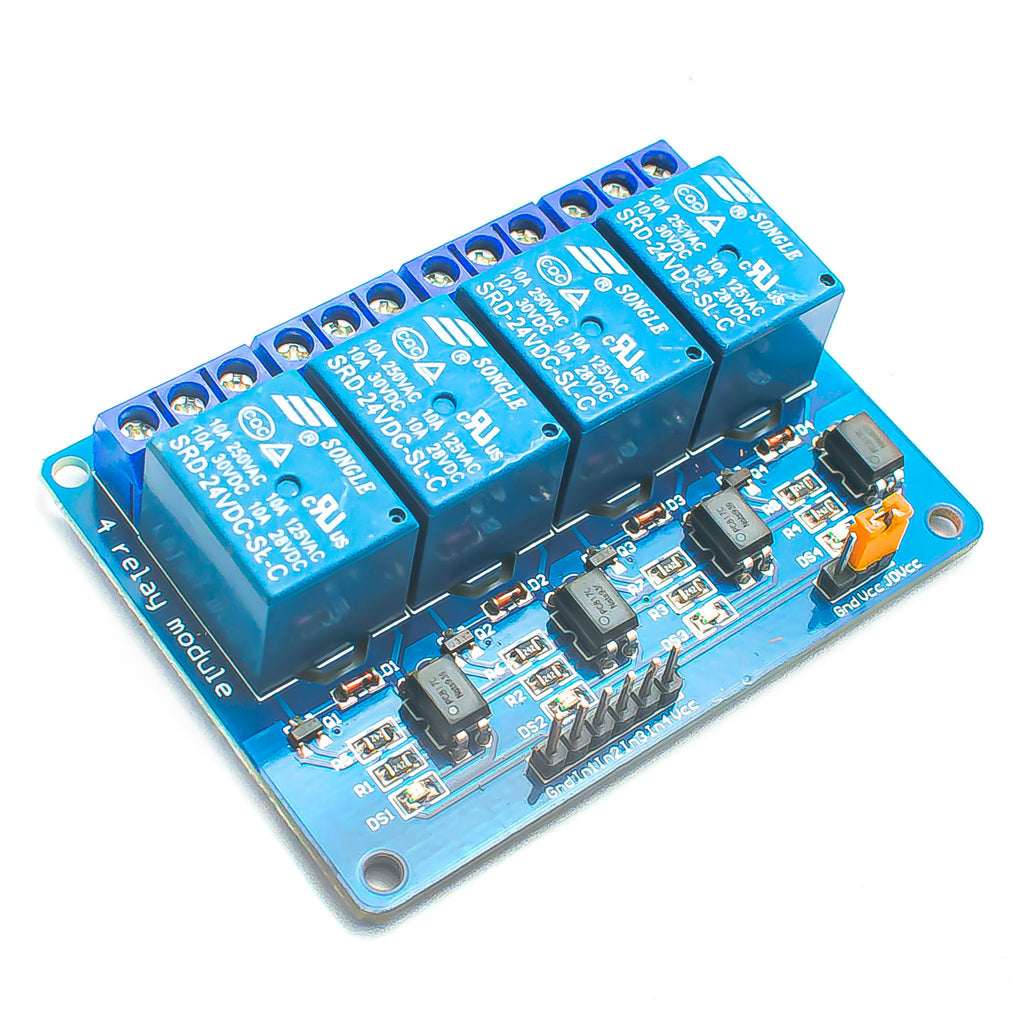

4 Channel 24V Relay Module with Optocoupler

4 Channel 24V Relay Module with Optocoupler

Description This 24 Volts operated 4 Channel Relay Module is an interface board any controller like Arduino, AVR, PIC, ARM, etc., can control it using digital signals. This module is...
19 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2326
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Modules Relay Module
View full product details

Description

This 24 Volts operated 4 Channel Relay Module is an interface board any controller like Arduino, AVR, PIC, ARM, etc., can control it using digital signals. This module is capable of handling high currents such as AC250V 10A or DC30V 10A. The digital outputs from controllers and processors control larger loads and devices such as DC motors, AC motors, and other AC and DC devices. It's a four-channel relay module, which means it can control up to four devices. Each relay or channel in a four-channel relay module requires a driving current of 15-20 mA and a 24 volt supply.



SPECIFICATION
Operating Voltage 24V DC
Operating Current 20mA
AC Switching Capacity 250V @10A
DC Switching Capacity 30V @10A
No. of Channels 4
Size 71.6x53x18.6mm
