Description

The basic concept of 4-Channel Infrared IR Line Follower 4 Way Transmission Line Sensor Arduino is to transmit the IR signal (radiation) in a direction and a signal is received at the IR receiver when the IR radiation bounces back from a surface of the object.

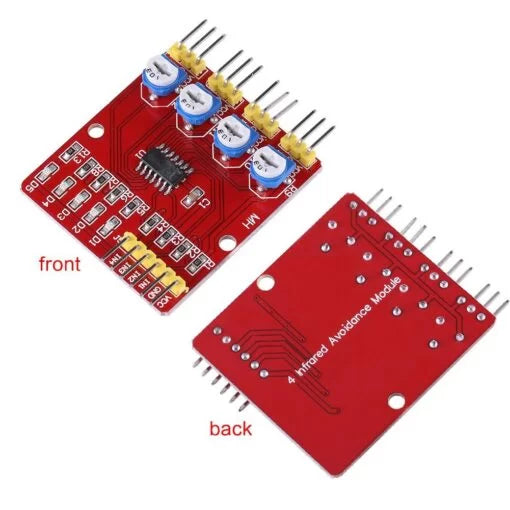

This 4 channels IR reflective sensor includes 4 IR line sensors and main board to handle all the signals. Each IR reflective sensor is composed of an IR emitter and a receiver, if something is in the measuring range, the sensor would outputs related signal. There are also 4 potentiometers on the main board so that the measuring range can be adjusted as you wish.

Features

• Measuring range: Adjustable range from 1mm to 60cm, the closer the distance, the more stable performance, and white reflection farthest
• Detection distance can be adjusted with potentiometer, clockwise to increase and counterclockwise to reduce
• Output: TTL 0/1, when the sensor received the reflected infrared, the indicate LED light and output TTL 0, otherwise output the TT L 1, and the LED off.
• Output port can be directly connected to the SCM IO port, also can drive a 5V relay module or buzzer module directly
• Widely used in robot obstacle avoidance, car obstacle avoidance, assembly line counting and black white line tracking

Specifications

• Sensor Type: Infrared
• Channel : 4 Channel
• Operating Voltage Range: 3.3V – 5V
• Operating Current: >1A
• Operating temperature: -10 C – +50 C
• Detecting Range: 1 to 60 mm
• Output Interface: 6-wire (1234: signal output, +: positive supply -: ground)
• Output signal: TTL level
• Mounting Hole: M3 screws
• Dimension (mm): Central control board:42(L) × 38(W) × 12(H), Small board:25(L) × 12(W) × 12(H)

Applications

• Smart car;
• Line and edge following;
• omni-directional detecting;
• On-board indicator

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
