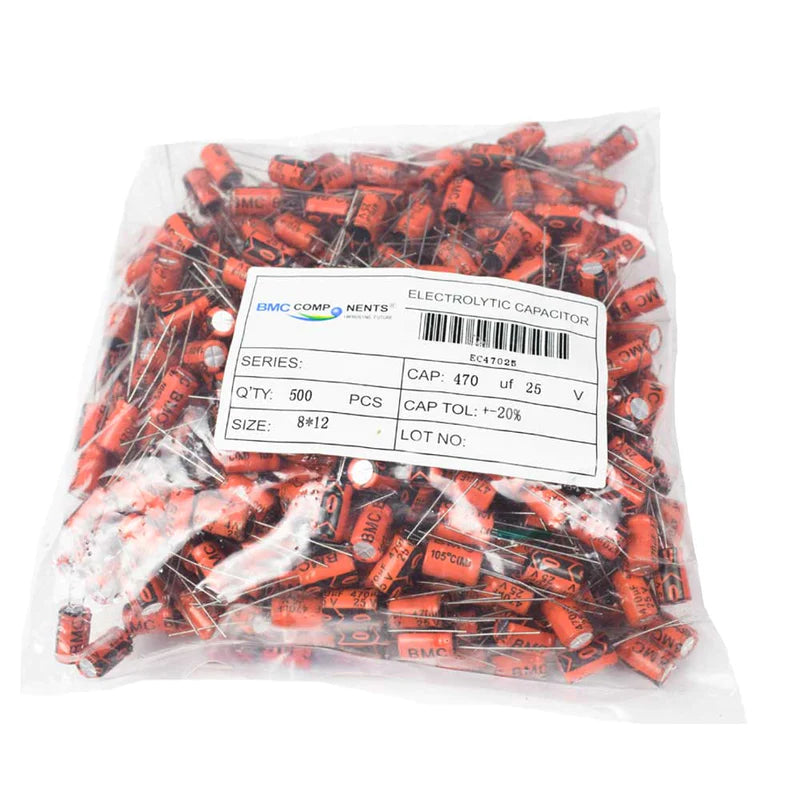

470µF 25V Electrolytic Capacitor

470µF 25V Electrolytic Capacitor

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description This is a 470µF 25V Electrolytic Capacitor made with high purity Etched and Formed Aluminium foil with aluminium oxide dielectric barrier as anode foil and an aluminium cathode foil...
27 people are viewing this right now

AvailabilityIn stock

SKU: ATC-4371
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Electrolytic Capacitor
View full product details

Description

This is a 470µF 25V Electrolytic Capacitor made with high purity Etched and Formed Aluminium foil with aluminium oxide dielectric barrier as anode foil and an aluminium cathode foil are concentrically wound with a layer of condenser grade paper in between and after impregnation with electrolyte, the wound element is housed in an Aluminium can and then hermetically sealed using a rubber bung to form an Aluminium electrolytic capacitor. The most important advantage of electrolytic capacitors is the higher capacitance ratio to dimensions when compared with other capacitors. This is principally due to the microscopically thin dielectric layer, which produces large capacitance per unit area.

SPECIFICATION
Capacitor Value 470µF
Voltage 25V
Type Electrolytic Capacitor
Size 8x12mm
Operating Temperature -40°C to 85°C
Tolerance ±20%
Mounting Type  Through Hole
Make BMC Component
Quantity
500
