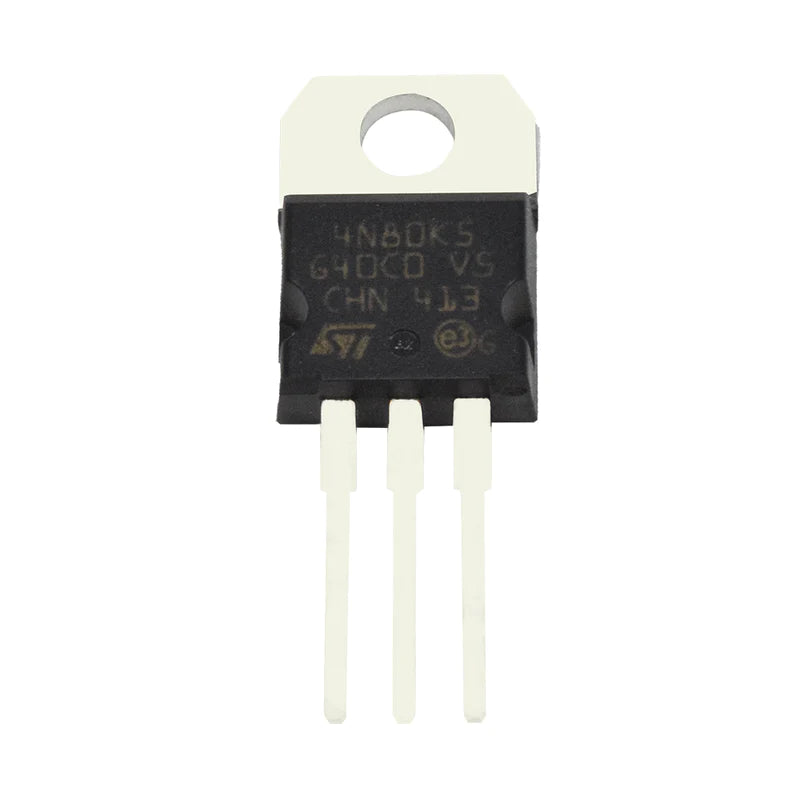

4N80K5 4A 800V N-Channel Power MOSFET

4N80K5 4A 800V N-Channel Power MOSFET

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The 4N80 is a three-terminal silicon device with a current conduction capability of 4A, a fast switching speed, a low on-state resistance, an 800V breakdown voltage rating, and a...
27 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3566
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

The 4N80 is a three-terminal silicon device with a current conduction capability of 4A, a fast switching speed, a low on-state resistance, an 800V breakdown voltage rating, and a maximum operating temperature of -40°C. 5 volts is the threshold voltage. They are intended to be used in applications. Switched-mode power supplies, DC-to-DC converters, PWM motor controls, bridge circuits, and general-purpose switching applications are examples of such devices. These high-voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency.

Datasheet

Features

  • Industry’s lowest RDS(on) x area
  • Industry’s best figure of merit (FoM)
  • Ultra low gate charge
  • 100% avalanche tested
  • Zener-protected
SPECIFICATIONS
 Model 4N80K5
 Brand STMicroelectronics
 Type MOSFET
 Maximum Drain Current |Id| 4A
 Maximum Drain-Source Voltage |Vds| 800V
 Polarity Type N-Channel
 Mounting Type Through Hole
 Package TO-220
 No. of Pins 03
 Operation junction temperature -55 to 150 ºC
