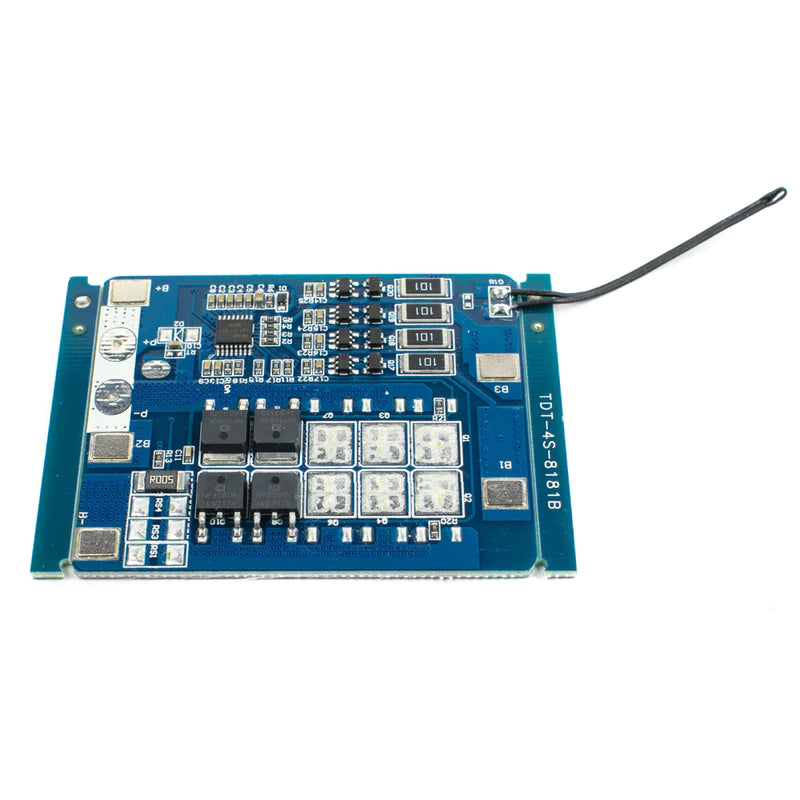

4S 10A LiFePO4 Battery BMS Module TDT-4S-8181B

4S 10A LiFePO4 Battery BMS Module TDT-4S-8181B

Description This is a 4S 10A LiFePO4 Lithium battery protection board, often known as a battery management system, for LiFePO4 batteries. This BMS is commonly used in making battery pack...
16 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2572
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: BMS
View full product details

Description

This is a 4S 10A LiFePO4 Lithium battery protection board, often known as a battery management system, for LiFePO4 batteries. This BMS is commonly used in making battery pack for EV and Solar application and also perform very well under extreme conditions. The temperature sensor is used to monitor battery temperature. Temperature is important because charging (of most lithium-based cells) is not permitted below freezing temperature and is usually above 45°C. The board's design is lightweight, making it simple to store and move. Overcharging and over-discharging protection, as well as short circuit and overcurrent protection, are all included on the board. This board may also be used to charge lithium batteries, as long as they are rechargeable. We can construct a battery pack with a voltage rating of up to 15V DC by combining 4 LiFePO4 electric cells with this BMS system.


Features:

  1. High-accuracy voltage detection circuit.
  2. Terminal of the charger using a high voltage device.
  3. MOS transistor can control the battery charge and discharge.
  4. Low standby current consumption.
  5. Use Lithium-ion batteries of 32650 size and of EV and Solar Grades.
  6. Battery Pack Output  12.8V (4S Type).
  7. Deep Discharge & Over Charging Protection.
  8. Comes with Temperature Sensor.
SPECIFICATIONS
Model TDT-4S-8181
Brand  TDT
Material FR4
Charging Voltage 12.8V
Overcharge Protection Yes
Max.  Discharge Current 10A
Thermal Protection  Yes
Size 65x50x4.5mm
