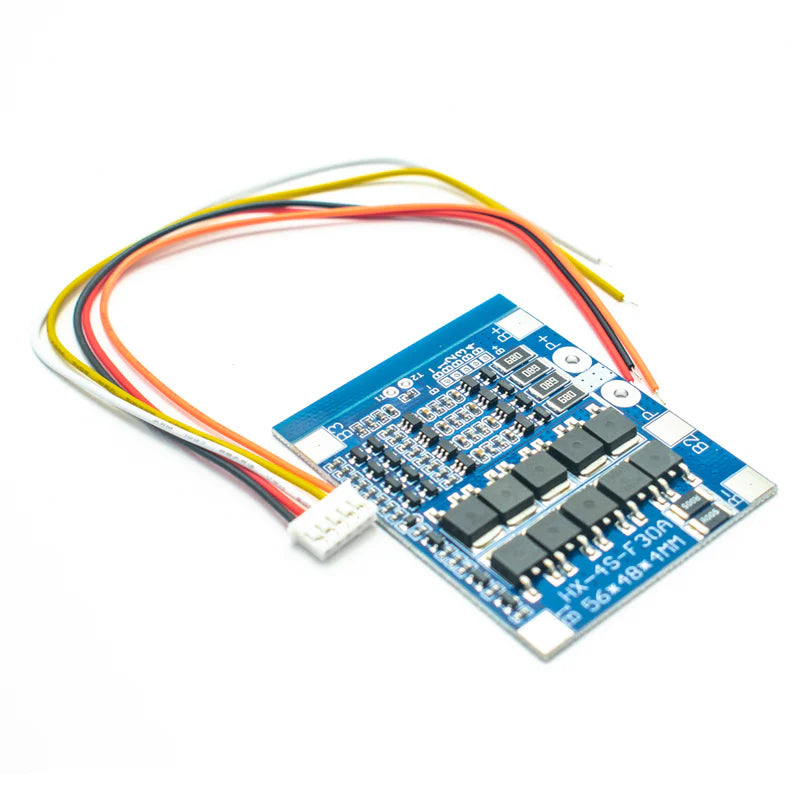

4S 30A 12.8V w/Balance 3.2V LiFePO4 32650 Battery BMS Protection PCB Board

4S 30A 12.8V w/Balance 3.2V LiFePO4 32650 Battery BMS Protection PCB Board

Regular price ₹ 306.00
Regular price ₹ 330.00 Sale price ₹ 306.00
Sold Out
Tax included. Shipping calculated at checkout.
Description BMS (Battery Management System) is designed to monitor the status of batteries, control the charging/discharging process, etc. Four LiFePO4 32650 batteries can be connected to the HX-4S-F30A charge-discharge controller...
22 people are viewing this right now

AvailabilityIn stock

SKU: ATC-2579
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: BMS BMS & SLEEVE
View full product details

Description

BMS (Battery Management System) is designed to monitor the status of batteries, control the charging/discharging process, etc. Four LiFePO4 32650 batteries can be connected to the HX-4S-F30A charge-discharge controller module at the same time.

The module has short-circuit, overcharge, and over-discharge protection. One of the charge controller's functions is balance charging.

Specification

Charging Voltage 14.8V to 18V DC
Max. Charge Current 20A
Constant Discharge Current 30A
Max. Discharge Current 56A
Overcharge Detection Voltage 3.75±0.05V
Overcharge Release Voltage 3.6V±0.05V
Over-Discharge Detection Voltage 2.1V±0.08V
Over-Discharge Release Voltage 2.3V±0.1V
Over Current protection 56±10A
Working Current -30°C to 80°C
Over Current Protection Release Condition Cut Load
